TRIAX TDS 80A Satellite Antenna Steel 80cm Anthracite Satellite Dish RAL 7016

Very good steel antenna from TRIAX with a diameter of 71 x 79 cm.

Manufactured and tested to the highest standards of precision and quality, TRIAX satellite antennas offer easy installation, excellent performance, durability, and reliability.

Features:
- Easy Adjustment
- "One-Click" Mounting System
- Easy and Quick Assembly
- for Additional Corrosion Protection
- Hot-Dip Galvanized Steel or Aluminum
- Self-Locking Screws and Nuts
- Including a Unique Cable Protection System
- The High Signal Gain for The Best Possible Reception

Technical Info:
- Frequency Range: 10.7...12.75 GHz
- Elevation Setting Range: 0... 90°
- Gain at 11.7 GHz: 37,5 dBi
- Quality Factor: 17.3 dB/K
- Offset Angle: 25.6°
- F/D Ratio: 0.62

Mechanical Info:
- Material: Hot-Dip Galvanized Steel
- Color: RAL 7016 - Anthracite Gray
- Gross Depth: 0.100m
- Gross Height: 0.870m
- Gross Width: 0.832m
- Reflector Type: Offset
- Volume: 0.072m3
- Width: 71cm
- Height: 79cm
- Opening Angle: 2.6°
- Weight: 5.600kg
- Net Weight: 4.210kg

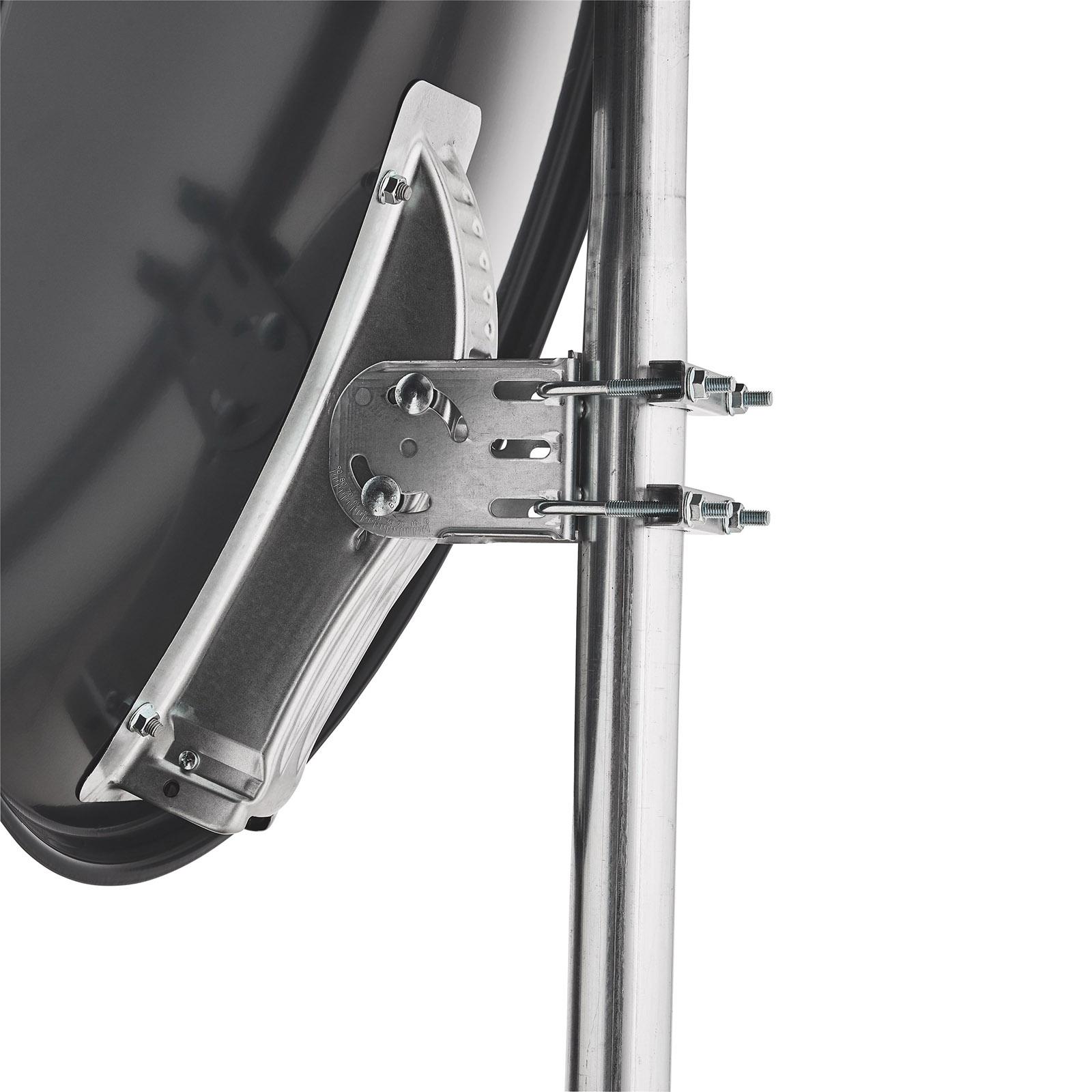

- Bracket for Standpipe Ø: 32 ... 60mm

Delivery:
1x TRIAX TDS 80A Satellite Antenna Steel 80cm Anthracite with LNB Arm and Mast Attachment
