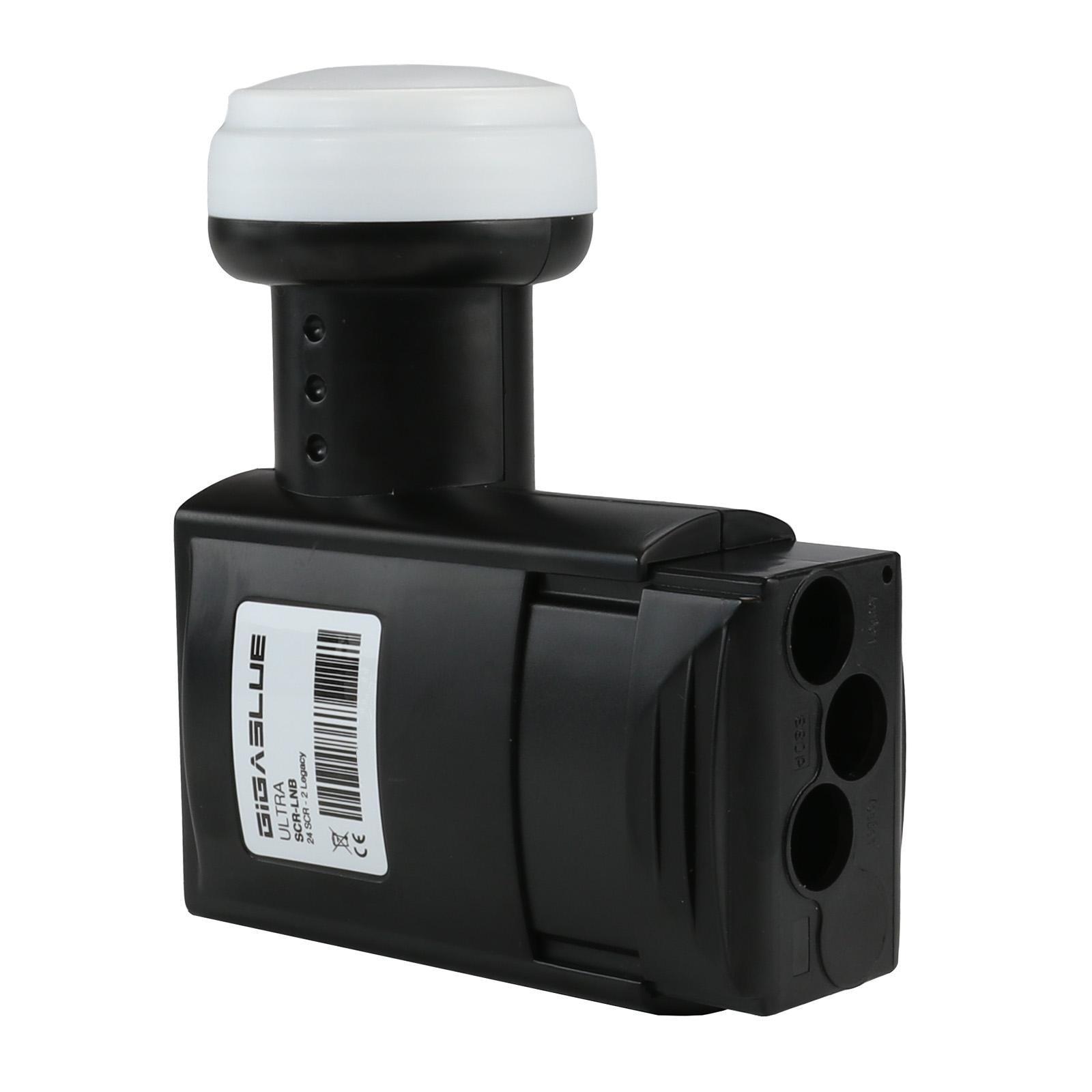

Gigablue Ultra SCR-LNB 24 SCR - 2 Legacy UHD 4K Unicable LNB 0.2dB

Gigablue Ultra SCR-LNB is part of innovative and award-winning Unicable LNB series (single-cable solution). The LNB is suitable for UHD transmissions and offers excellent noise figure values.

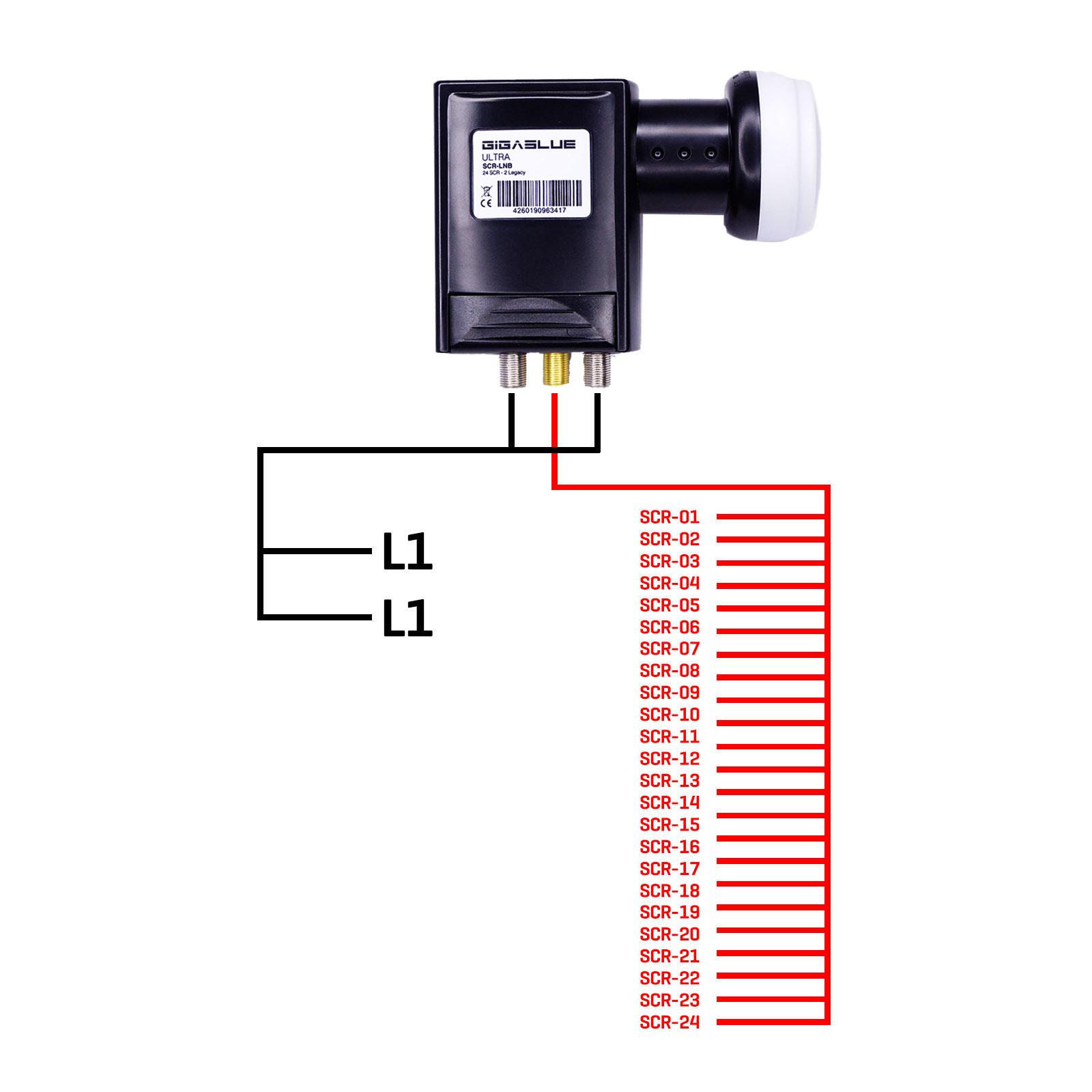

With Ultra SCR-LNB (single-cable LNB) you can supply up to 26 receivers / tuners with signals. Up to 24 tuners can be used with the SCR output. The signal can be split as required. With the 2 legacy connections, you can also use receivers that are not unicable.

Main Features:
Low phase noise
Low noise figure
Low energy consumption
High frequency stability

Technical Informations:
1x SCR output for up to 24 receivers on one coaxial cable (must be SAT-SCR compatible)
2x legacy output for up to 2 standard SAT receivers
Gain Legacy port: 57 - 61dB
Noise figure (interference factor): 0.1dB (typ.)
Gain SAT-SCR port: 42 - 62dB
Gain flatness: +/- 0.5dB / 26MHz over temp.
Gain variation: 4dB over temp.
pull-out weather protection
Cross-Pol Isolation:> 22dB over temp.
Legacy control: DiSEqC 1.0
Image rejection:> 40dB over temp.
Temp range: -40 ° C to + 65 ° C
Power Consumption Legacy port: 100mA
Power consumption SAT-SCR port: 300mA
Feed Ø 40mm
Feed Lengh: 42mm
HDTV & DVB-S2 compatible
Low band LO: 9.75 GHz
High band LO: 10.6 GHz
User bands: 1210, 1420, 1680, 2040, 1005, 1050, 1095, 1140, 1260, 1305, 1350, 1475, 1520, 1565, 1610, 1725, 1770, 1815, 1860, 1905, 1950, 1995, 2085, 2130 MHz

Delivery:

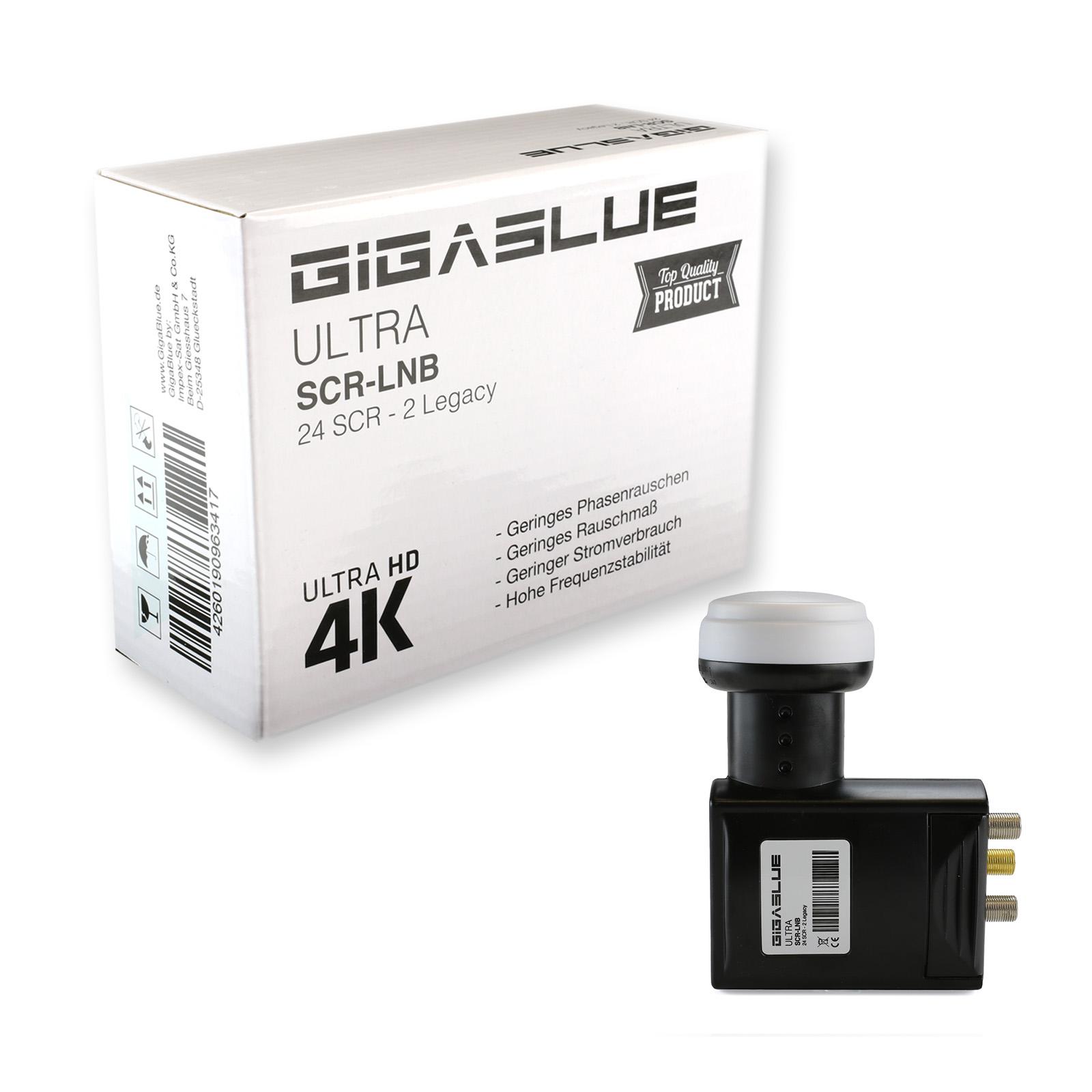

1x Gigablue Ultra Unicable LNB 24 SCR - 2 Legacy
1x assembly aid for F connector
