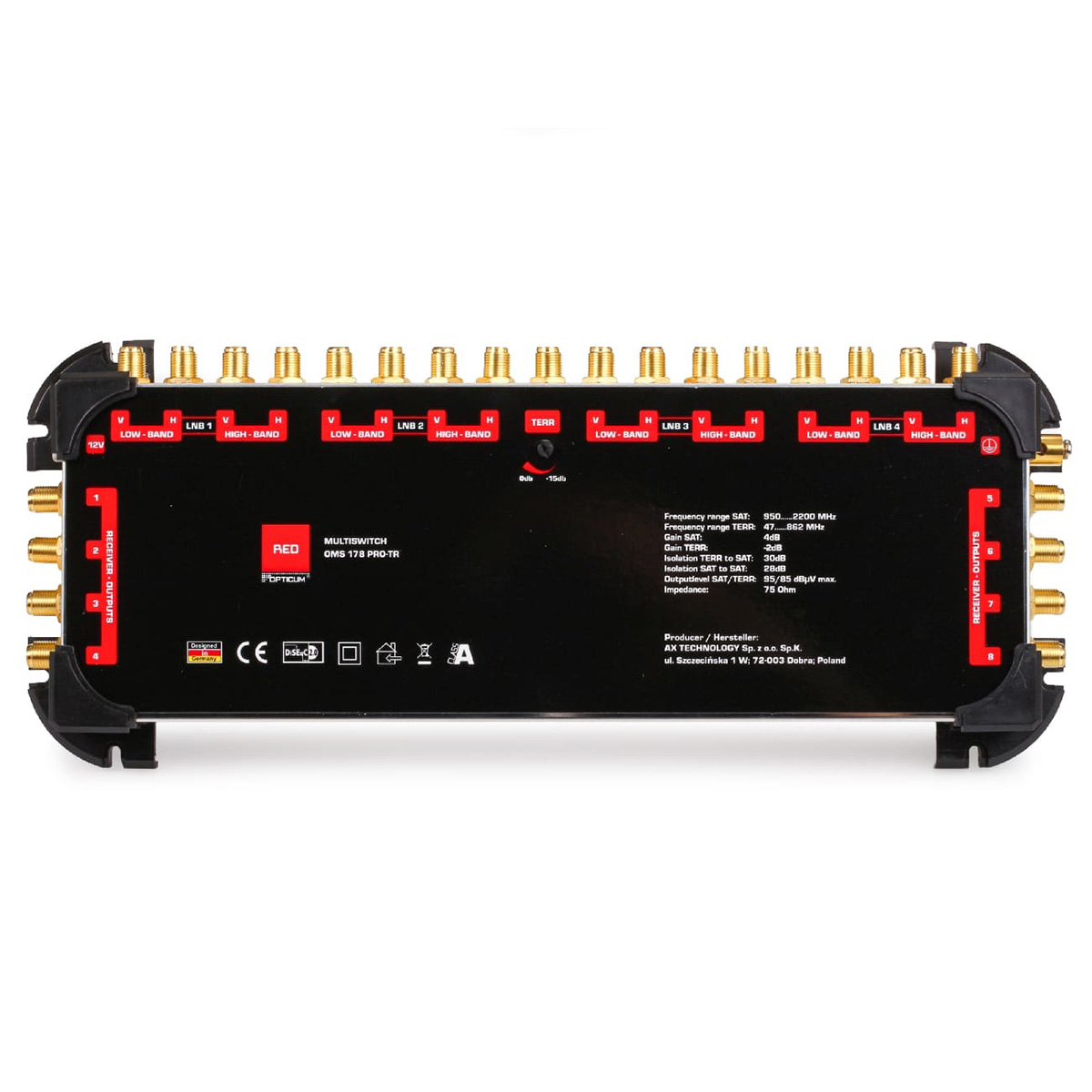

Experience ultimate versatility and premium performance with Opticum's OMS 17x PRO-TR series multiswitches. These state-of-the-art multi-switches are equipped with a variety of features, including a separate power supply, gold-plated connection sockets, and an active, adjustable terrestrial switch. This makes them the perfect solution for your satellite TV system.
Whether you want to connect a DVB-T2 antenna or use a Quattro LNB, these multiswitches give you the flexibility you need. They enable simultaneous transmission of all levels (horizontal high & low/vertical high & low) to any receiver without compromising on signal strength.
Features - Active and Adjustable Terrestrial - Gold-Plated Connection Sockets - Excellent Signal Strength - UHD, HDTV, SKY, 3D Compatible - Compatible with Quattro LNBs

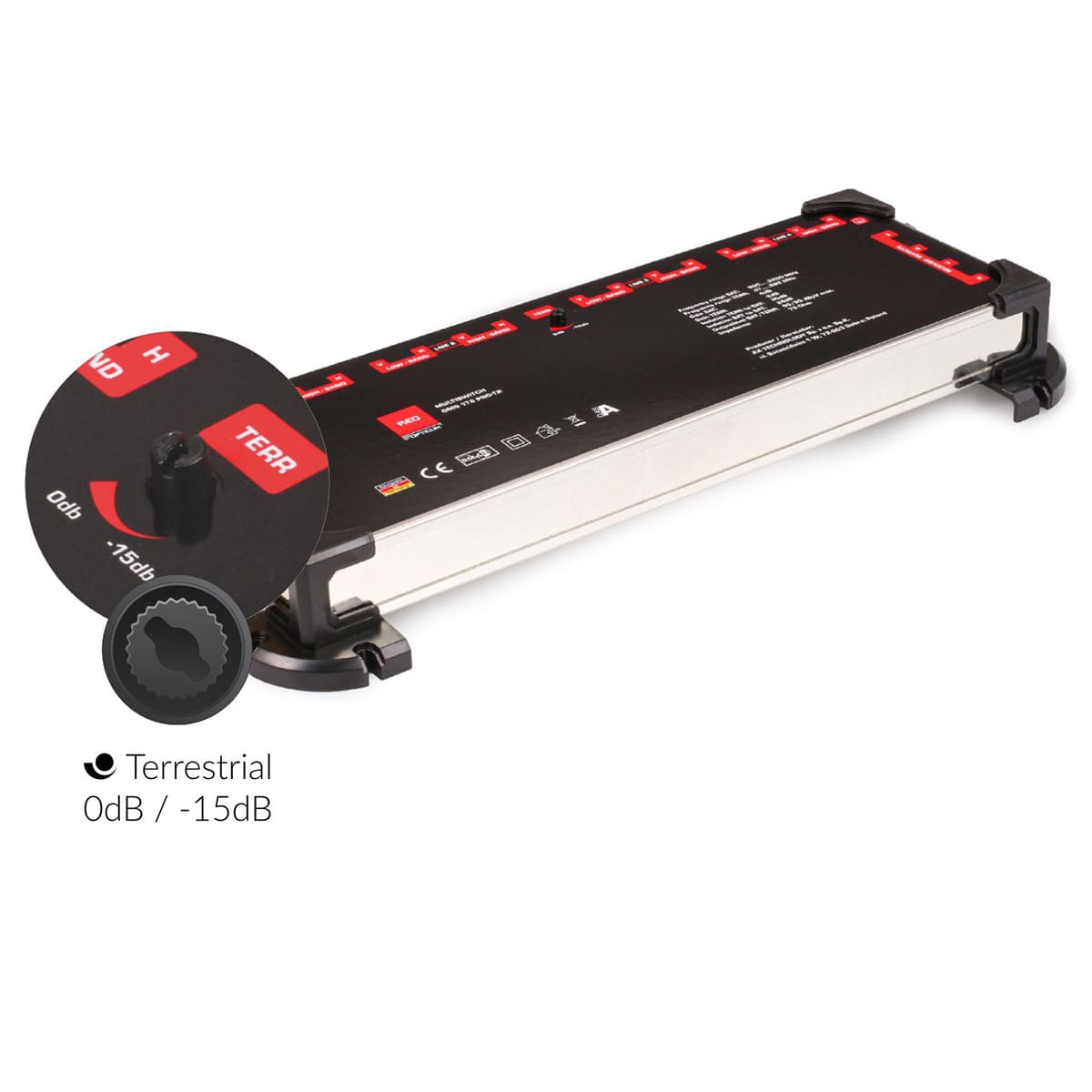

Technical Info - Inputs: 16 SAT + 1 Terrestrial - Subscriber outputs: 8/16/24/32* - Frequency Range Terr.: 47 - 862 MHz - Terrestrial: Active and Adjustable (0 -15 dB) - Frequency Range (SAT/IF): 950 - 2200 MHz - Switching Voltage Selection LNB/Polarity: 18V22KHz; 13V22KHz; 18V; 13V DiSEqC 2.0 - Attenuation of Subscriber Output (dB)(SAT/IF at 950 MHz): -2dB, -3dB, -4dB, -5dB* - Attenuation of Subscriber Output (dB)(SAT/IF at 2150 MHz): 6dB, 5dB, 4dB, 3dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 1-8): -8dB, -10dB, 4dB, 2dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 9-16): -10dB, 4dB, 2dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 17-24): 4dB, 2dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 24-32): 2dB* - Max Output Level (SAT/IF IMA3): 95dBµV - Max Output Level (terr.): 80dBµV, 85dBµV* - Return Loss Inputs/Outputs (dB): 10dB/8dB - Decoupling (dB)(TERR. - SAT): 25dB - Max. Power Consumption from the Receiver (mA): 50mA - Max. Power Consumption Internally (from Power Supply): 60mA, 180mA* - Max. Remote Supply Voltage to LNB: 1000mA - Temperature Range during use: -20 - +70 °C
* varies depending on the variant selected.
Dimension - Dimension of 17/8: 362 x 134 x 42 mm* - Dimensions of 17/16: 362 x 198 x 42 mm* - Dimension of 17/24: 362 x 262 x 42 mm* - Dimension of 17/32: 362 x 326 x 42 mm*
* The dimensions vary depending on the variant selected.
