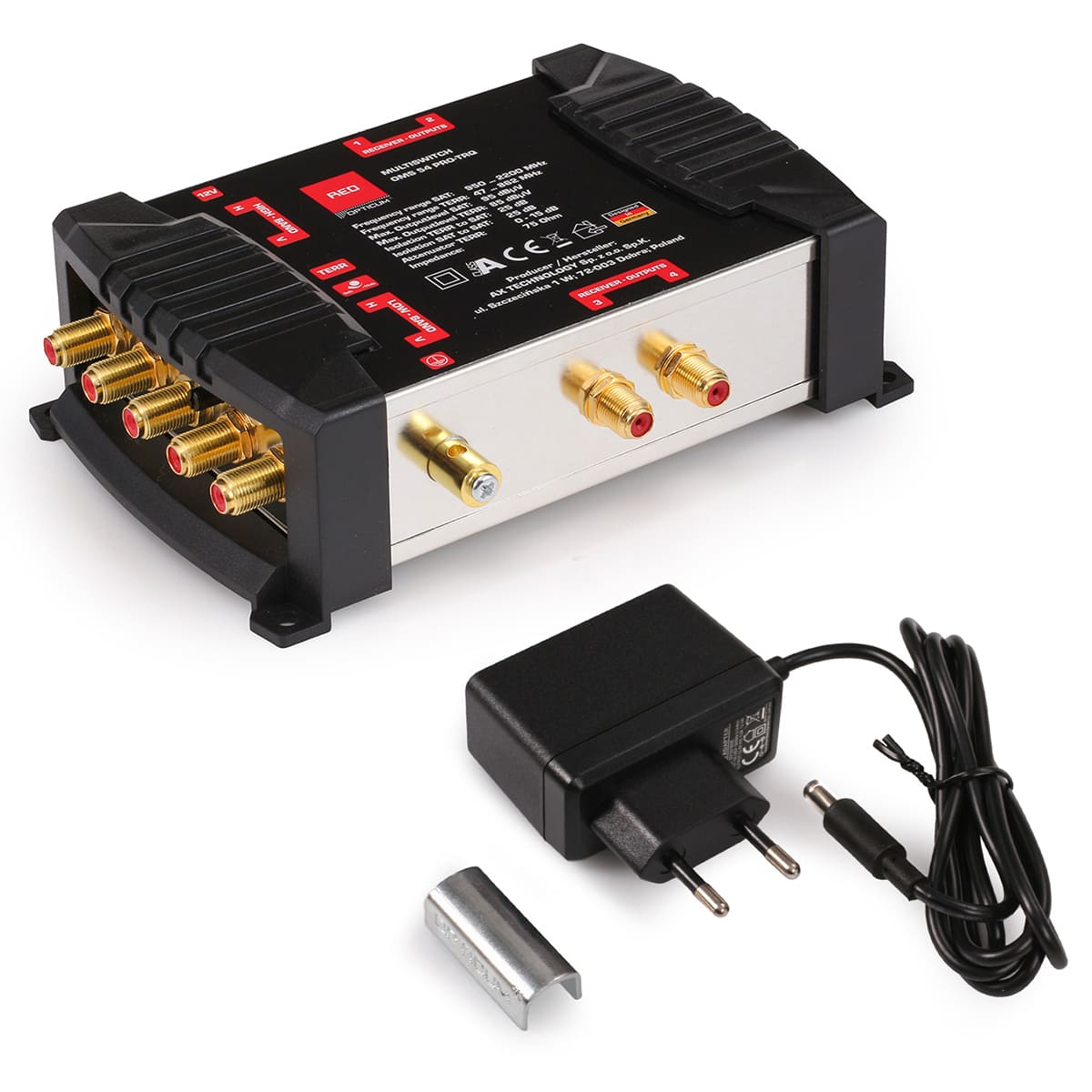

Experience ultimate versatility and premium performance with Opticum's OMS 5x PRO-TRQ series multiswitches. These state-of-the-art multi-switches are equipped with various features, including a separate power supply, gold-plated connection sockets, and an active, adjustable terrestrial circuit. This makes them the perfect solution for your satellite TV system.

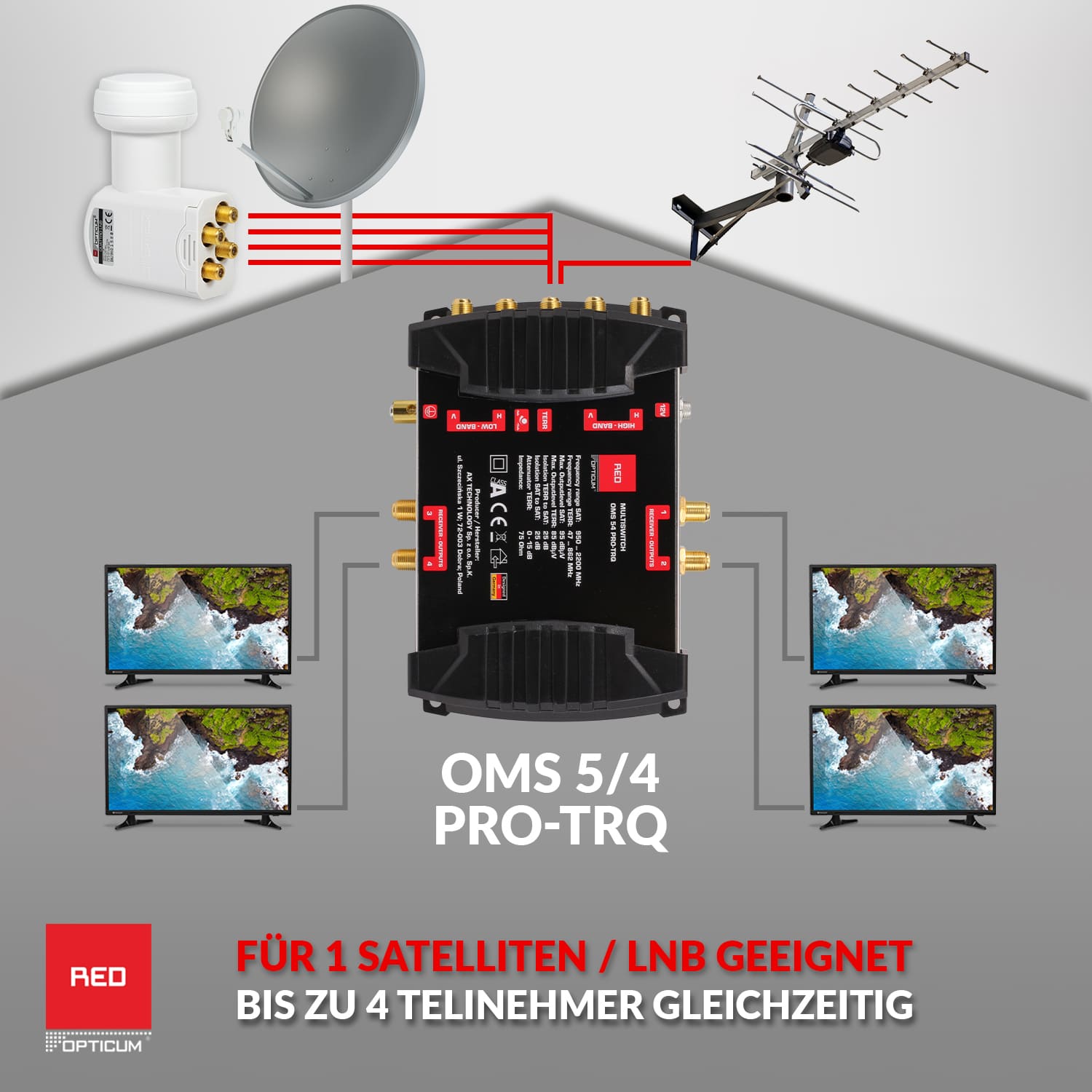

Whether you want to connect a DVB-T2 antenna or use a Quad or Quattro LNB, these multiswitches give you the necessary flexibility. They enable simultaneous transmission of all levels (horizontal high & low/vertical high & low) to any receiver without compromising signal strength.
Features - Active and Adjustable Terrestrial - Gold-Plated Connection Sockets - Excellent Signal Strength - UHD, HDTV, SKY, 3D Compatible - Compatible with Quad or Quattro LNBs

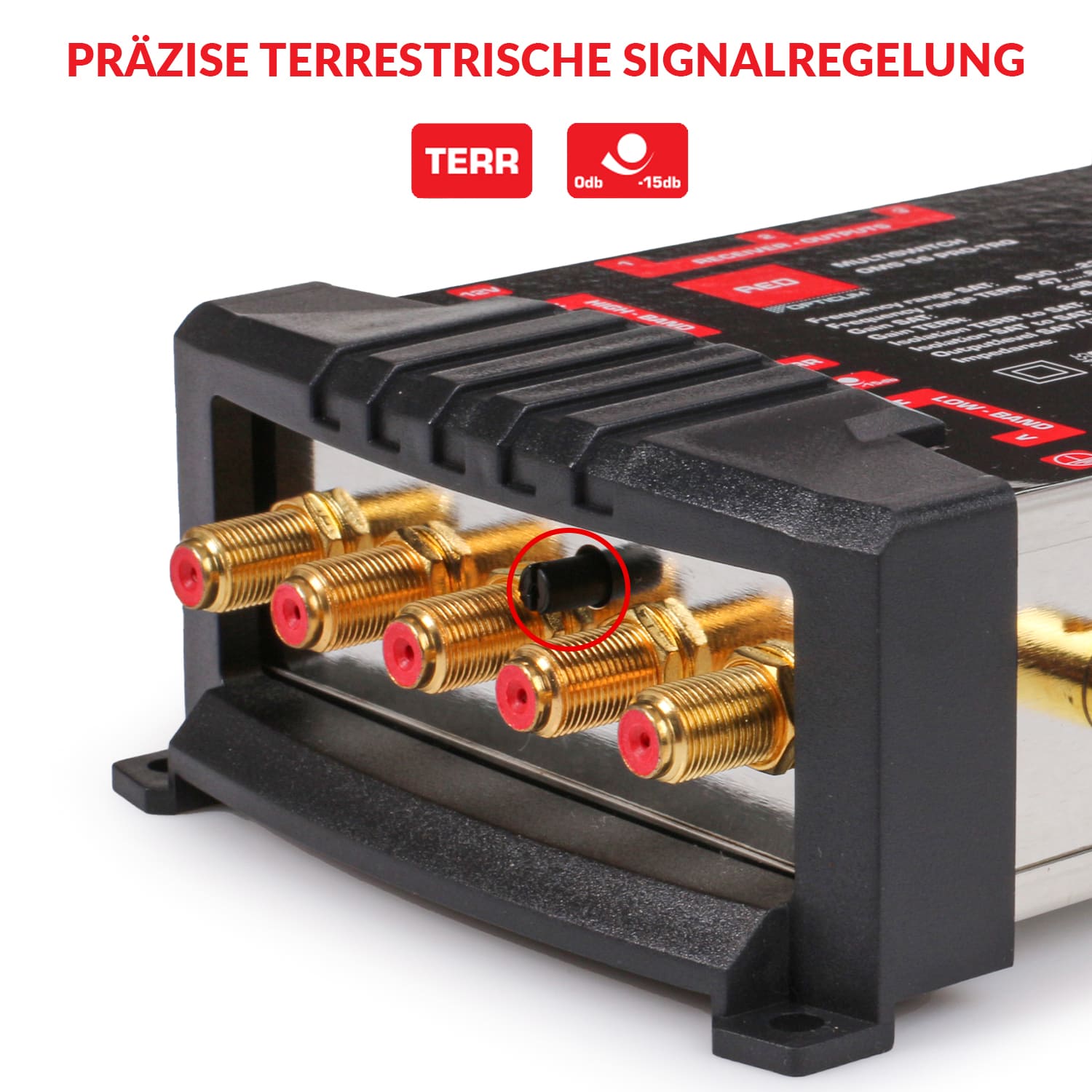

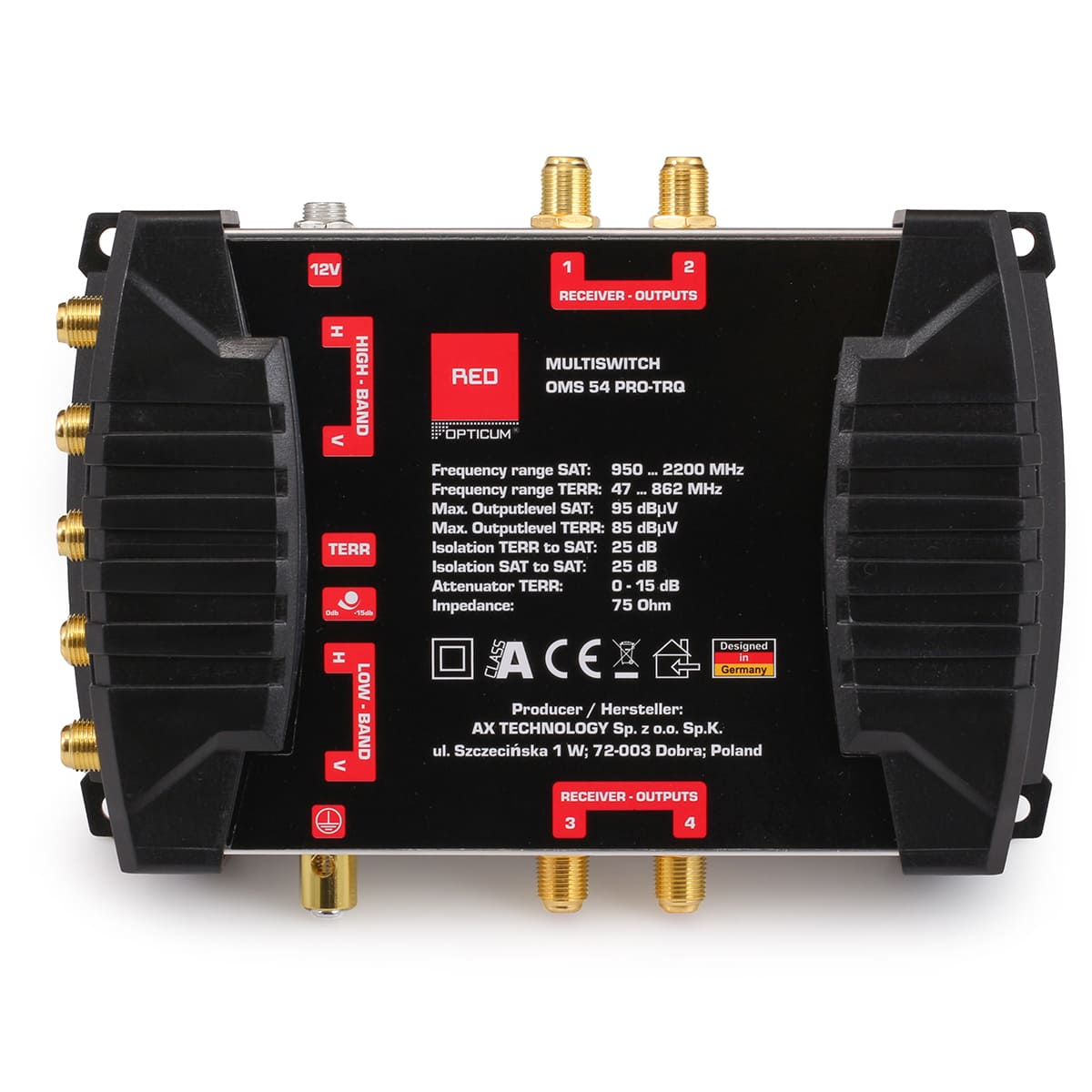

Technical Info - Inputs: 4 SAT + 1 Terrestrial - Subscriber Outputs: 4/6/8/12/16/24/32* - Frequency Range Terr.: 47 - 862 MHz - Terrestrial: Active and Adjustable (0 -15 dB) - Frequency Range (SAT/IF): 950 - 2200 MHz - Switching Voltage Selection LNB/Polarity: 18V22KHz; 13V22KHz; 18V; 13V - Attenuation of Subscriber Output (dB)(SAT/IF at 950 MHz): 0dB, -1dB, -2dB, -3dB* - Attenuation of Subscriber Output (dB)(SAT/IF at 2150 MHz): 8dB, 7dB, 6dB, 5dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 1-8): 8dB, 2dB, 0dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 9-16): 8dB, 2dB, 0dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 17-24): 2dB, 0dB* - All Values are Average +/- 1.5 dB Tolerance (terr. Rec./Out 24-32): 0dB - Max Output Level (SAT/IF IMA3): 95dBµV - Max Output Level (terr.): 85dBµV - Return Loss Inputs/Outputs (dB): 10dB/8dB - Decoupling (dB)(TERR. - SAT): 25dB - Max. Power Consumption from the Receiver (mA): 45mA - Max. Power Consumption Internally (from Power Supply): 45mA, 110mA* - Max. Remote Supply Voltage to LNB: 800mA - Temperature Range during use: -20 - +70 °C
* varies depending on the variant selected.
Dimension - Dimension of 5/4: 173 x 128 x 54 mm* - Dimension of 5/6: 173 x 128 x 54 mm* - Dimension of 5/8: 173 x 128 x 54 mm* - Dimension of 5/12: 253 x 128 x 54 mm* - Dimension of 5/16: 253 x 128 x 54 mm* - Dimension of 5/24: 333 x 128 x 54 mm* - Dimension of 5/32: 413 x 128 x 54 mm*
* The dimensions vary depending on the variant selected.
