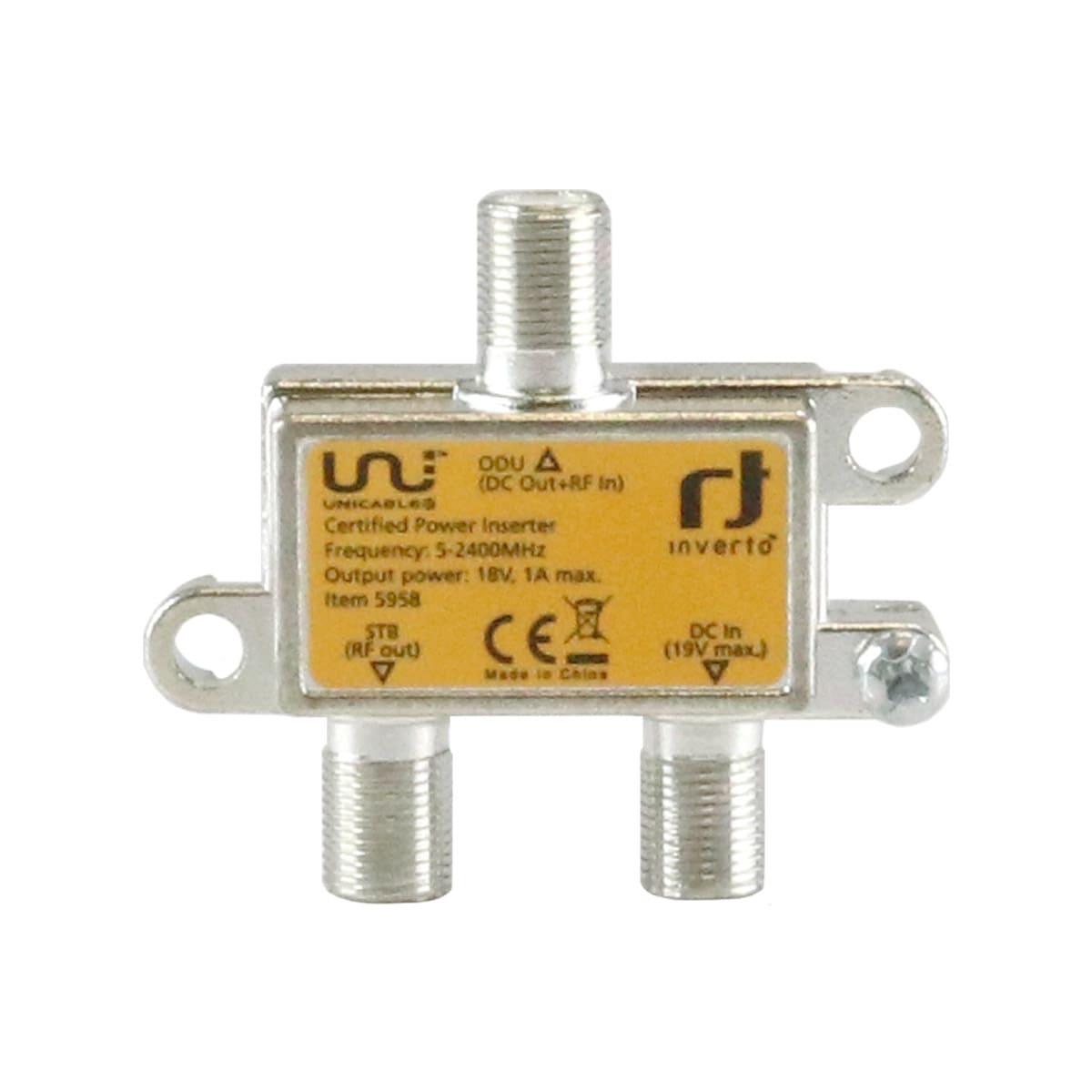

Inverto Unicable II Power Inserter 5-2400MHz incl. Power Supply

This power inserter is designed for the power supply of a Unicable II LNB or a multiswitch output port and the connected Quattro/Wideband LNB, should the connected STB not be able to provide the required power for the LNB/multiswitch output port. A constant DC voltage is made available for the LNB/multi switch output port without loading the STB. The commands of the DiSEqC / EN50494 / EN50607 type are passed through to the LNB/multiswitch output port.

Technical Info
- Frequency range 5 - 2400MHz
- Voltage input 19V 1A 1x F connector
- Input ODU 1x F connector
- Output STB 1x F connector
- Insertion loss 3dB max.
- Input return loss -10dB max.
- Output return loss -10dB max.
- Maximum current 750mA
- Operating temperature -30 ~ + 60 ° C
- Weight (Unicable): 34g
- Dimensions: 55 x 49 x 15 mm

Delivery
1x Unicable Power Inserter
1x Power Supply 19V 1A
