Selfsat H50dCSS+ Unicable 2 Antenna incl. 2 legacy 4K UHD Outputs for up to 26 Participants

€279.00 *

plus VAT plus shipping

Free shipping in Germany!

Delivery date unknown

  • MONANT190
The first Unicable 2 flat antenna with 24 SCR frequencies and 2 legacy outputs. The antenna can... more

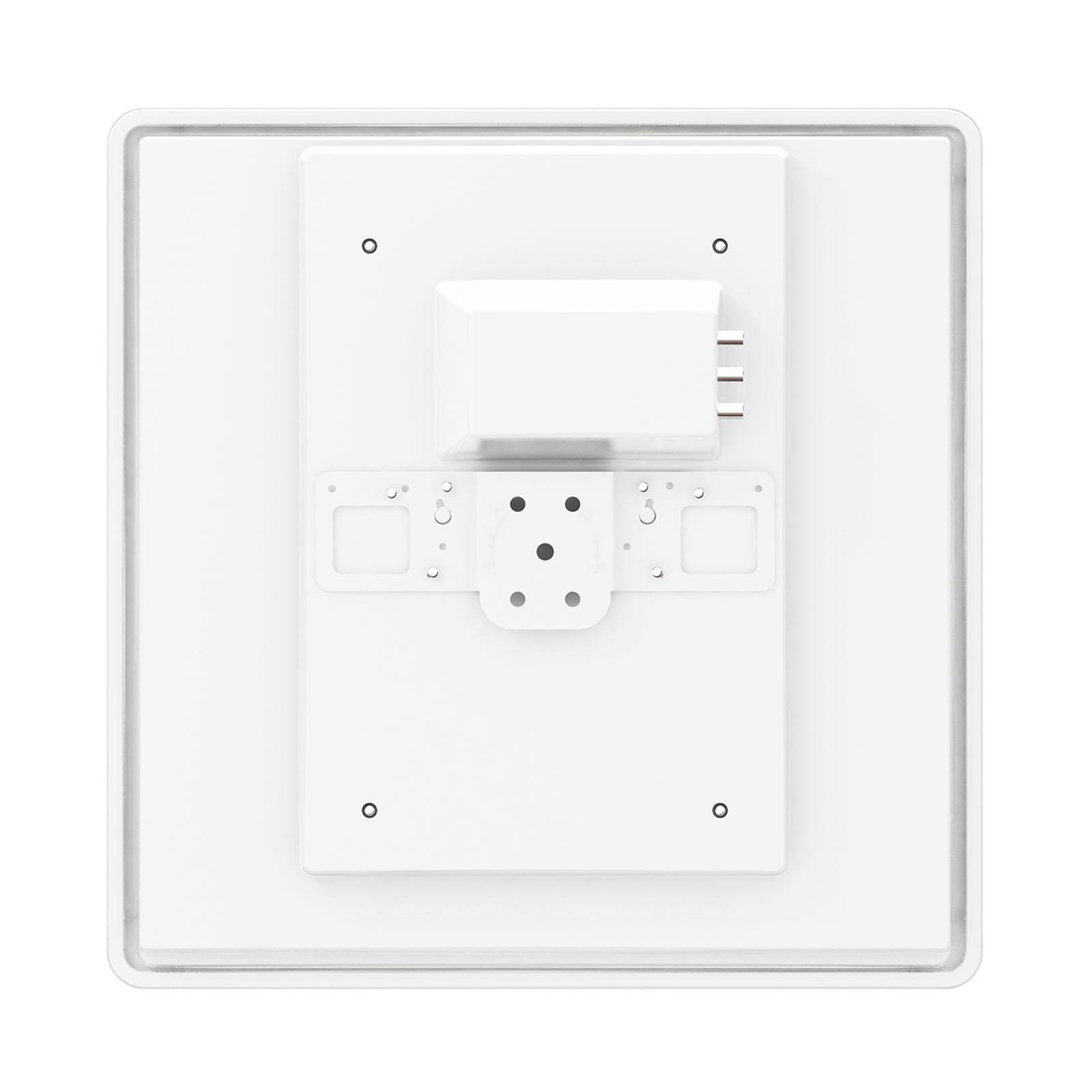

The first Unicable 2 flat antenna with 24 SCR frequencies and 2 legacy outputs. The antenna can be used to supply up to 26 devices with a satellite signal. Simplifies the installation of complex distributions in the house - thereby saving on material and labor costs. 1x SCR2 output for up to 24 JESS-compatible devices, 2x legacy outputs for conventional receivers - 8 SCR frequencies are downward compatible with EN50494.

Selfsat H50dCSS + with a Unicable 2 LNB (SCR-LNB compatible to EN50494 / EN50607)
- 1 SCR 2 output for up to 24 JESS-compatible devices
- 2 legacy outputs for conventional receivers
- 8 SCR frequencies are downward compatible with EN50494
- Simplifies the installation of complex distributions in the house - thereby saving on material and labor costs.
- Modern, flat design
- All mounting options included

Alignment note:
When using a satellite measuring device, the antenna reacts like a conventional satellite antenna (single LNB). No special measuring device is required to align the antenna.

Unicable (SCR) frequencies:
CH01: 1210 MHz
CH02: 1420 MHz
CH03: 1680 MHz
CH04: 2040 MHz
CH05: 1005 MHz
CH06: 1050 MHz
CH07: 1095 MHz
CH08: 1140 MHz
CH09: 1260 MHz
CH10: 1305 MHz
CH11: 1350 MHz
CH12: 1475 MHz
CH13: 1520 MHz
CH14: 1565 MHz
CH15: 1610 MHz
CH16: 1725 MHz
CH17: 1770 MHz
CH18: 1815 MHz
CH19: 1860 MHz
CH20: 1905 MHz
CH21: 1950 MHz
CH22: 1995 MHz
CH23: 2085 MHz
CH24: 2130 MHz

Technical data (general):
- Polarization: vertical & horizontal
- Antenna gain: 36.1dBi (at 12.7GHz)
- Input frequency: 10.7 ~ 11.7 GHz / 11.7 ~ 12.75 GHz
- LO frequency: 9.75 GHz / 10.6 GHz
- LO deviation: & plusm; 1 MHz (at 25 ° C)
- LO stability: & plusm; 3 MHz (at -40 ~ 60 ° C)
- LO phase noise:
- 60 dBc / Hz (max.) (At 1 kHz)
- 75 dBc / Hz (max.) (At 10 kHz)
- 100 dBc / Hz (max.) (At 100 kHz)
- Noise figure: 0.8 dB (typ.)
- Cross polarization isolation: 20 dB (min.)
- P 1dB: 0 dBm (min.)
- VSWR output: 2.0: 1 (max.)
- Current consumption: 250 mA (at 13V) (max.)
- Output connection: 75O F typ
- Operating temperature: -40 ° C ~ + 60 ° C
- Size (W x D x H): 566 x 300 x 65mm
- Weight: 7.0kg

Technical data (SatCR output):
- Conversion gain outside the AGC: 60dB (min.)
- Gain variation: 7.5dB P -P (max.)
- IF AGC output target level in CW mode: -32 ~ -17dBm
- Control signal: CENELEC EN-50494 or EN50607

Technical data (legacy - output):
- Output IF (Legacy): 950-2150 MHz
- Conversion gain outside the AGC: 55dB (min.)
- Gain variation: 7.5dB P -P (max.)
- IF AGC output target level in CW mode: -16 ~ 25dBm
- control signal:
1) Polarization wrapping: DiSEqC signal 10.5 ~ 14V (vertical) / 16 ~ 21V (horizontal)
2) Band switching: Low Band: 0kHz / High Band: 22kHz ± 4kHz

Delivery:
1x SELFSAT H50dCSS + Unicable 2 satellite antenna
1x Unicable 2 LNB for up to 26 participants
2x Legacy output
1x Mast bracket with mounting clamp
1x Wall bracket
1x Assembly instructions
1x Screw set
1x Tools
