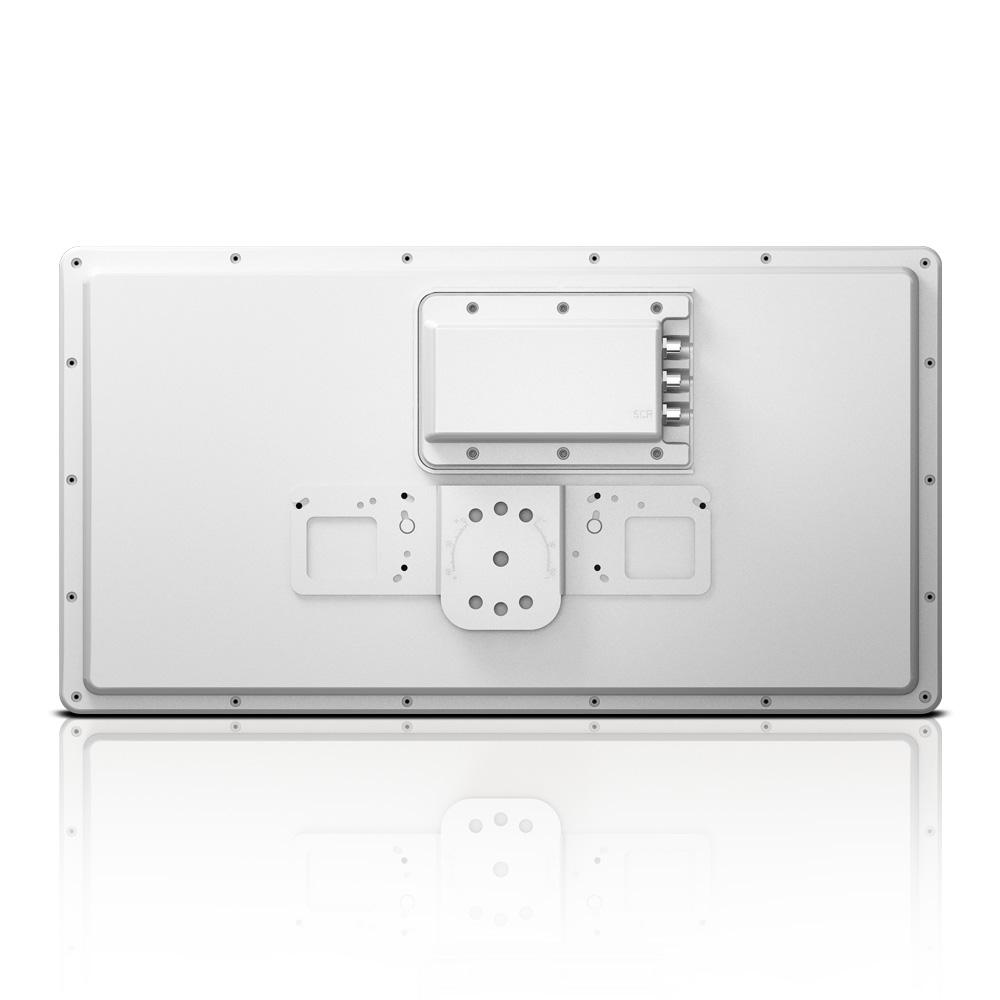

Selfsat H21SCR+ antenna 4 Unicable + 2 Legacy connectors

The first Unicable flat antenna with 4 Unicable signals and 2 legacy outputs. The antenna can supply up to 6 devices with satellite signals.

- Selfsat H21D with a Unicable LNB (SCR LNB)
- 2 legacy outputs for conventional receivers and 1 Unicable output for up to 4 Unicable-compatible devices
- Simplifies the installation of complex distributions in the house. This saves material and labor costs.
- Modern, flat design
- All bracket variants included

Technical data:
Polarization: Vertical & Horizontal
Antenna gain: 34.5dBi (at 12.7GHz)
Input frequency: 10.7 ~ 11.7 GHz / 11.7 ~ 12.75 GHz
LO frequency: 9.75 GHz / 10.6 GHz
LO deviation: 1 MHz (at 25°C)
LO stability: 3 MHz (at -40 ~ 60°C)
LO phase noise:
-60 dBc/Hz (Max.) (at 1 kHz)
-75 dBc/Hz (Max.) (at 10 kHz)
-100 dBc/Hz (Max.) (at 100 kHz)
Noise figure: 0.8 dB (Typ.)
Cross polarization isolation: 20 dB (Min.)
P 1dB: 0 dBm (Min.)
Output VSWR: 2.0 : 1 (Max.)
Current consumption: 250 mA (at 13V) (Max.)
Output connection: 75O F typ
Operating temperature: -40°C ~ +60°C
Size (W x D x H): 566 x 300 x 65mm
Weight: 7.0kg

Technical data (SatCR - output):
Output SatCR channels: 1210, 1420, 1680, 2040 MHz
Conversion gain outside AGC: 60dB (Min.)
Gain variation: 7.5dB P -P (Max.)
IF AGC output target level in CW mode: -32~-17dBm
Control signal: CENELEC EN-50494

Technical data (Legacy - Output):
Output IF (Legacy): 950-2150 MHz
Conversion gain outside the AGC: 55dB (Min.)
Gain variation: 7.5dB P -P (Max.)
IF AGC output target level in CW mode: -16~25dBm

Control signal:
1) Polarization switching: DiSEqC signal 10.5~14V (vertical) / 16~21V (horizontal)
2) Band switching: Low band: 0kHz / High band: 22kHz 4kHz

Scope of delivery:
SELFSAT H21D-SCR satellite antenna
SCR LNB for up to 6 participants
Mast bracket with mounting clamp
Wall bracket
Window bracket
Stand
Assembly instructions
Screw set
Tools
