The Octagon SF 8008 "Gold Limited Edition" Combo Receiver is the next product in the successful... more
The Octagon SF 8008 "Gold Limited Edition" Combo Receiver is the next product in the successful 8008 families. With this model, you get a limited version that combines elegance and full power in one. You get this receiver with two permanently installed DVB-S2X Sat & DVB-C/T2 tuners. This power pack is primarily characterized by its enormous performance (15.000 DMIPS) and lightning-fast switching times.
Features:
- 4K Ultra HD Resolution
- Enigma2 Linux OS Operating System
- HEVC H.265 Video Decoding
- WiFi (Built-In) & Gigabit LAN
- DVB-S2X & DVB-C/T2 Combo
- MicroSD Slot & Card Reader
- HDR 10bit, HLG, HbbTV
- OTA Updates
The tuners mentioned are equipped with the latest standards DVB-S2X, DVB-C, and DVB-T2 HD. In addition, the Octagon SF8008 offers a USB 3.0 port, Gigabit LAN interface and H.265 video decoding open up new perspectives for you to enjoy the full spectrum of the new 4K experience. Experience a new 4K feeling with the new Octagon SF8008 Limited Gold Edition.
All-in-One
Octagon SF8008 Limited Gold Edition 4K UHD supports numerous images, download additional plugins, HDR, HLG, and H.265 decoding. Gigabit LAN with 1000Mbps ensures a very fast connection of your high-resolution content; you also have two WiFi antennas and a permanently installed WiFi module at your disposal.
In addition, the scope includes a USB 3.0, USB 2.0, and a MicroSD slot, and a card reader with enough options to play content from external storage media and thus increase the entertainment experience even more. The Octagon SF8008 Limited Gold Edition also has HDMI 2.0, an AV (audio & video), and an S/PDIF output for digital audio signals and has a power consumption of fewer than 0.5 watts in standby.
Technical Info:
- Hisilicon Hi3798MV200 Huawei
- Quad-Core 64Bit (4x 1.6GHz) 15000 DMIPS
- DVB-S2X 4K UHD & Multistream (T2-MI direct input)
- DUAL OS: Enigma2 Linux OS Operating System & OCTAGON Linux OS SX
- 2160P Media Playback H.264 and H.265
- 8GB eMMC Flash & 1GB DDR4 RAM
- Symbol Rates from 100 - 80,000 SR
- PIP HD & UHD (picture in picture)
- Sat> IP & V-Tuner USB Dongle
- FFmpeg HW Playback Support
- Multi Transcoding & Multiroom
- PVR Recordings (*Optional)
- Blind Scan (blind search)
- HDMI CEC Support
- HDR 10bit & HLG
- 0.5W Stand-By
- HW Multiboot
- OTA Updates
- HbbTV
- LED Display (red/blue)
- 4-Digit 7-Segment Display
- IR Sensor (infrared receiver)
- Dimensions (LxDxH): 220 x 125 x 40mm
Tuner & Demodulator:
- DVB-S2X: Silabs Si2166-D60 & RDA5815m
- DVB-C/T2: Altobeam ATBM7821

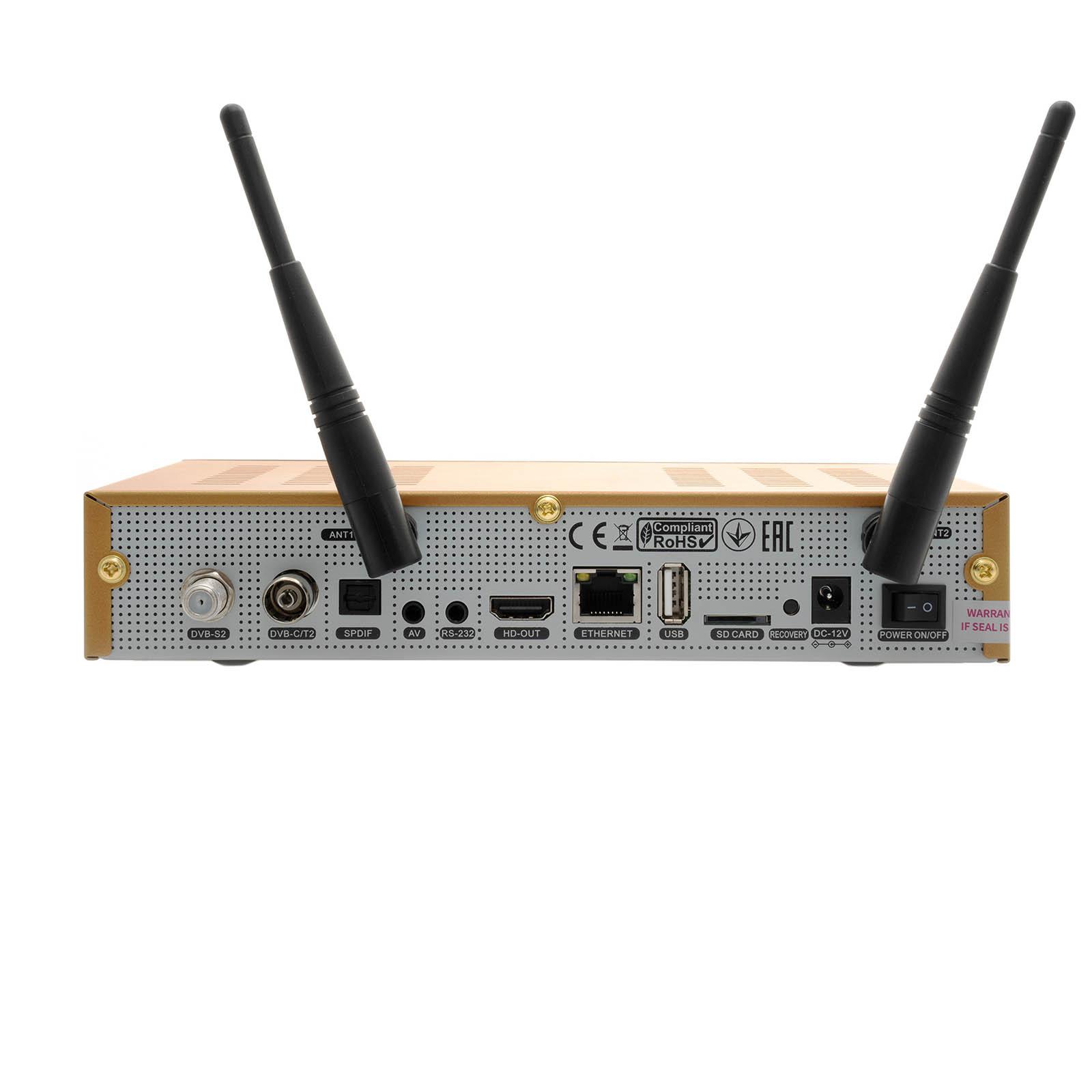

Connections & Connectivity:
1x USB 2.0
1x USB 3.0
1x HDMI 2.0
1x MicroSD Slot
1x S/PDIF
1x DVB-S2X Tuner
1x DVB-C/T2 Tuner
1x Power Switch On/Off
1x Card Reader (CA Card)
1x Power (On/Off) Button
1x DC-12V Power Supply
1x Recovery (Reset) Button
1x AV (Audio-Video Socket)
1x Gigabit LAN (1000 Mbps)
1x WiFi (300Mbit, 2x WiFi Antennas)
1x RS-232 Socket (Maintenance & Service)
Delivery:
1x Octagon SF8008 Limited Gold Edition 4K UHD Combo Receiver

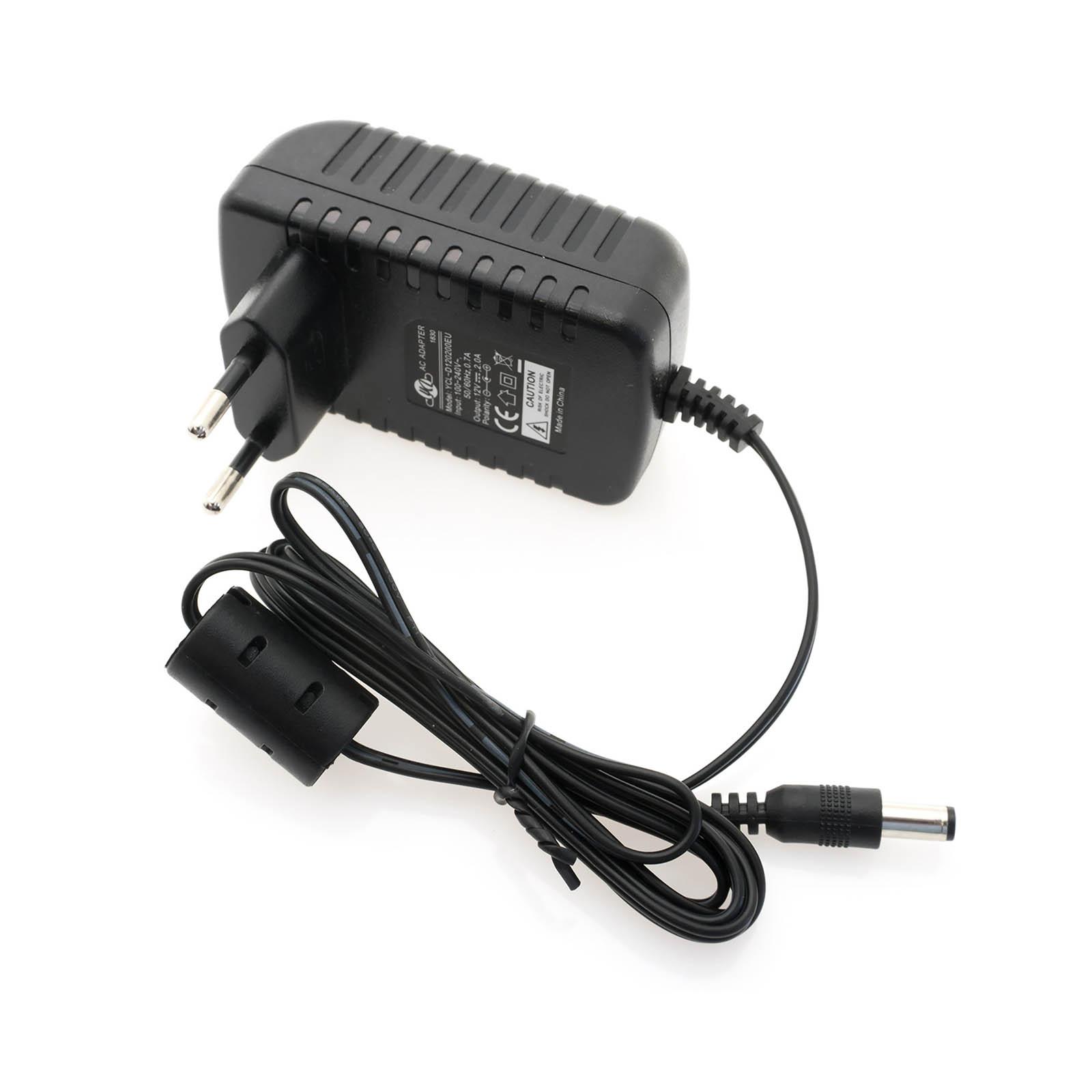

1x Power Supply (DC12V-2A)
1x User Manual (De & En)

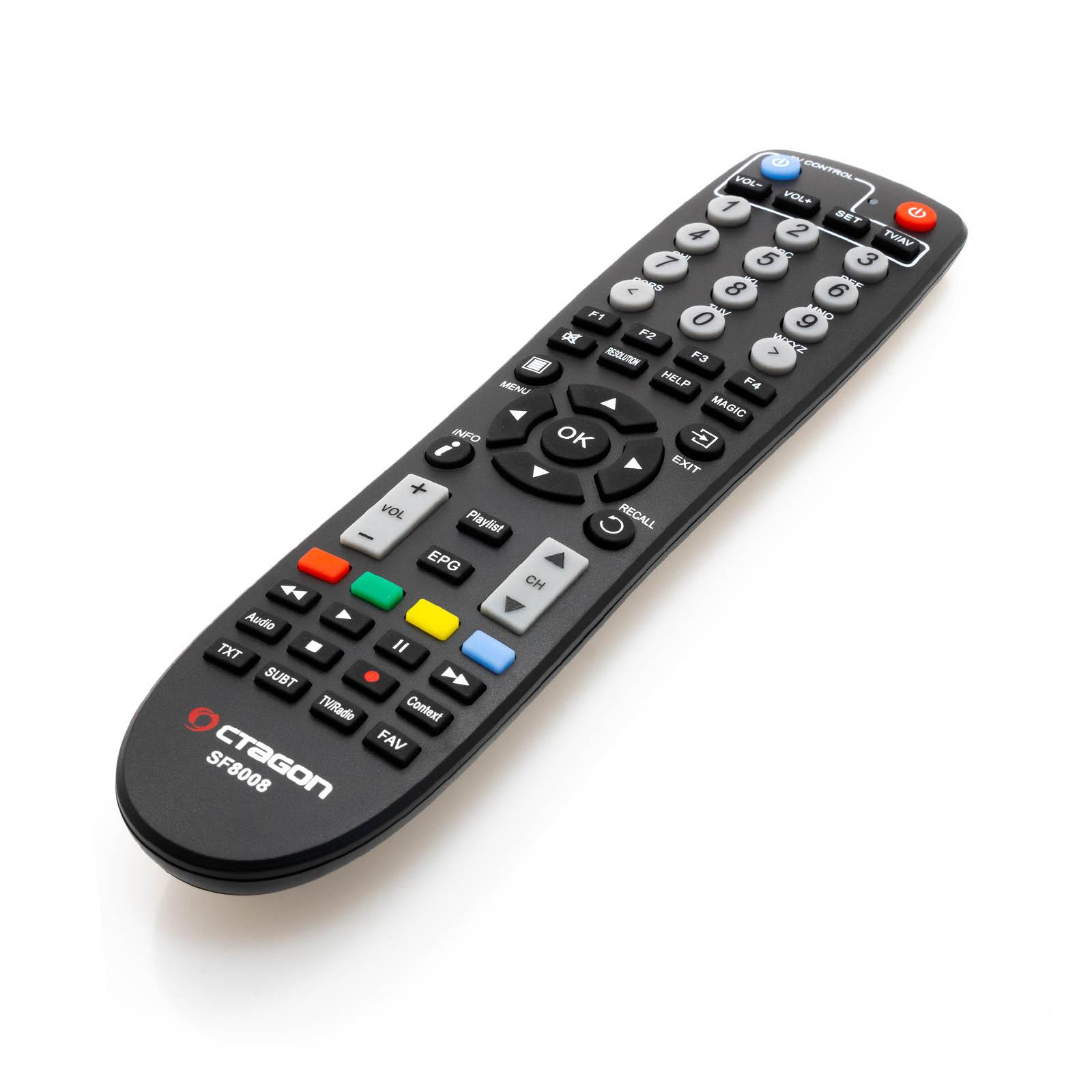

1x Remote Control Unit
1x HDMI Cable
2x Batteries
Features:
- 4K Ultra HD Resolution
- Enigma2 Linux OS Operating System
- HEVC H.265 Video Decoding
- WiFi (Built-In) & Gigabit LAN
- DVB-S2X & DVB-C/T2 Combo
- MicroSD Slot & Card Reader
- HDR 10bit, HLG, HbbTV
- OTA Updates
The tuners mentioned are equipped with the latest standards DVB-S2X, DVB-C, and DVB-T2 HD. In addition, the Octagon SF8008 offers a USB 3.0 port, Gigabit LAN interface and H.265 video decoding open up new perspectives for you to enjoy the full spectrum of the new 4K experience. Experience a new 4K feeling with the new Octagon SF8008 Limited Gold Edition.
All-in-One
Octagon SF8008 Limited Gold Edition 4K UHD supports numerous images, download additional plugins, HDR, HLG, and H.265 decoding. Gigabit LAN with 1000Mbps ensures a very fast connection of your high-resolution content; you also have two WiFi antennas and a permanently installed WiFi module at your disposal.
In addition, the scope includes a USB 3.0, USB 2.0, and a MicroSD slot, and a card reader with enough options to play content from external storage media and thus increase the entertainment experience even more. The Octagon SF8008 Limited Gold Edition also has HDMI 2.0, an AV (audio & video), and an S/PDIF output for digital audio signals and has a power consumption of fewer than 0.5 watts in standby.
Technical Info:
- Hisilicon Hi3798MV200 Huawei
- Quad-Core 64Bit (4x 1.6GHz) 15000 DMIPS
- DVB-S2X 4K UHD & Multistream (T2-MI direct input)
- DUAL OS: Enigma2 Linux OS Operating System & OCTAGON Linux OS SX
- 2160P Media Playback H.264 and H.265
- 8GB eMMC Flash & 1GB DDR4 RAM
- Symbol Rates from 100 - 80,000 SR
- PIP HD & UHD (picture in picture)
- Sat> IP & V-Tuner USB Dongle
- FFmpeg HW Playback Support
- Multi Transcoding & Multiroom
- PVR Recordings (*Optional)
- Blind Scan (blind search)
- HDMI CEC Support
- HDR 10bit & HLG
- 0.5W Stand-By
- HW Multiboot
- OTA Updates
- HbbTV
- LED Display (red/blue)
- 4-Digit 7-Segment Display
- IR Sensor (infrared receiver)
- Dimensions (LxDxH): 220 x 125 x 40mm
Tuner & Demodulator:
- DVB-S2X: Silabs Si2166-D60 & RDA5815m
- DVB-C/T2: Altobeam ATBM7821
Connections & Connectivity:
1x USB 2.0
1x USB 3.0
1x HDMI 2.0
1x MicroSD Slot
1x S/PDIF
1x DVB-S2X Tuner
1x DVB-C/T2 Tuner
1x Power Switch On/Off
1x Card Reader (CA Card)
1x Power (On/Off) Button
1x DC-12V Power Supply
1x Recovery (Reset) Button
1x AV (Audio-Video Socket)
1x Gigabit LAN (1000 Mbps)
1x WiFi (300Mbit, 2x WiFi Antennas)
1x RS-232 Socket (Maintenance & Service)
Delivery:
1x Octagon SF8008 Limited Gold Edition 4K UHD Combo Receiver
1x Power Supply (DC12V-2A)
1x User Manual (De & En)
1x Remote Control Unit
1x HDMI Cable
2x Batteries
Produkttyp: | Combo-Receiver, Kabel-Receiver, Sat-Receiver |
Anschlüsse: | 1xKartenleser, 1xMicroSD-Slot, 1xRS232, 1xUSB 2.0, 1xUSB 3.0, 1000Mbit Ethernet, DC-Stromanschluss, HDMI-Ausgang, S/PDIF, WiFi (WLAN) |
Flash/RAM: | 8GB/1GB |
Features: | Blindscan, HbbTV, HDR10, HEVC H.264, HEVC H.265, HLG, Multiboot, OTA Update, PiP HD |
Menü-Sprache: | deutsch, diverse |
Betriebssystem: | Linux E2 |
Auflösung: | 3840x2160 |
Maße: | 220 x 125 x 40 mm |
Display: | 4-Stelliges 7-Segment |
Prozessor: | 1.600 MHz ARM QuadCore |
DMIPS: | 15.000 |
Tuner: | DVB-C/T2, DVB-S2X |
Fernsteuerung: | Infrarot |
SoC (Chip): | Hi3798MV200 Huawei |
