MegaSat Stacker / De-Stacker Single-Cable Converter (Supports DiSEqC, for SAT Reception)

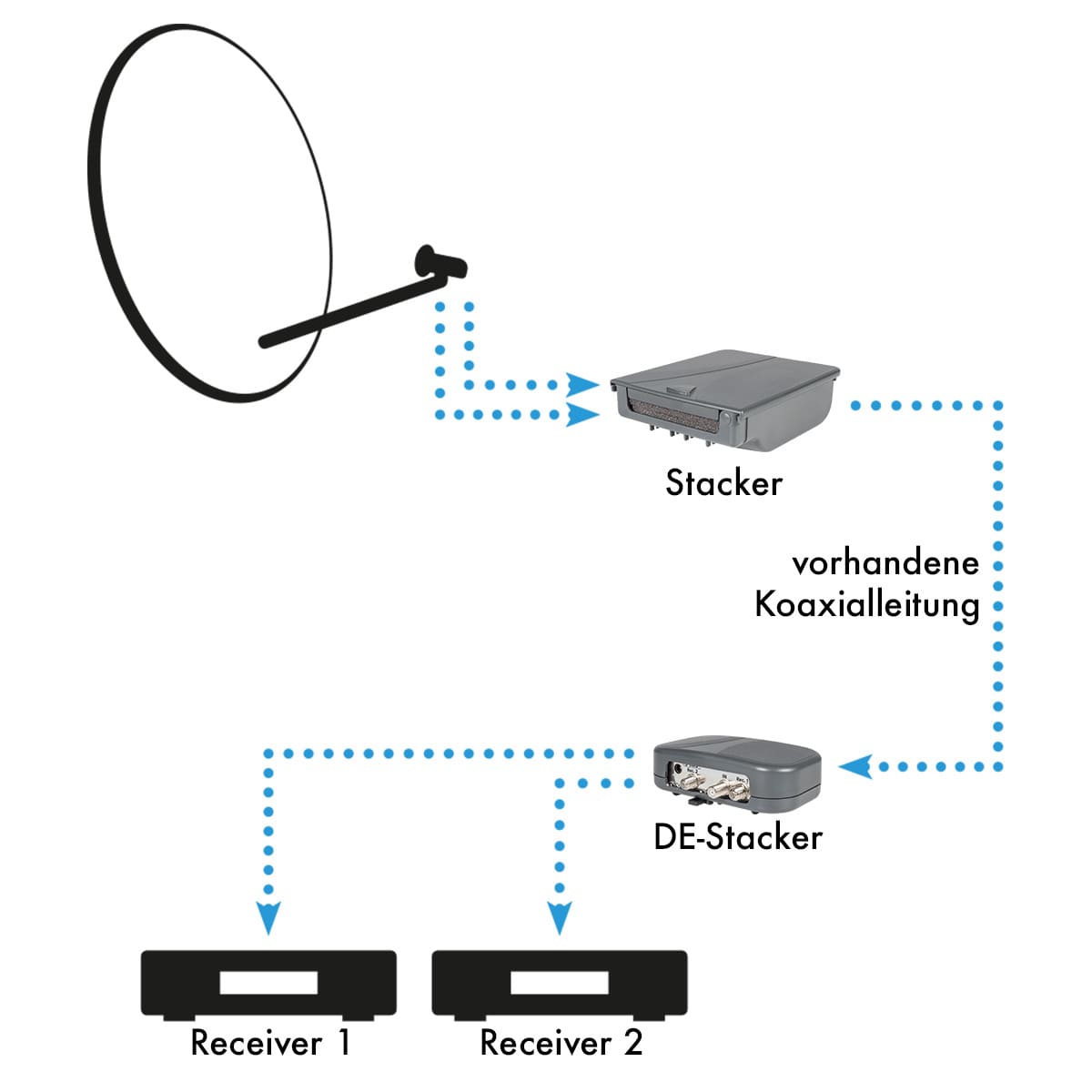

Discover the clever solution for versatile satellite television with the single-cable converter Stacker/Destacker. This innovative device allows you to bundle two coaxial cables into one and then split them again so that you can operate two receivers with just one cable installed. With the integrated DiSEqC function you can even transmit two different satellites such as Astra and Hotbird. This system is efficient and flexible thanks to the power supply via the connected devices or optionally via a separate power supply. Ideal for coaxial lines of up to 50 meters.

Features
- Efficiently bundles two coaxial lines
- Supports DiSEqC for satellite selection
- Powered by devices or power supply
- Ideal for up to 50 meters of cable

Technical Info (Stacker)
- LNB Input 1: 5-2150 MHz
- LNB Input 2: 950-2150 MHz
- Outputs: 1x 5-3550 MHz (with F High Quality)
- Attenuation Terrestrial: -1 dB
- Attenuation Satellite: -4 dB
- Attenuation Satellite converted: +6 dB
- Attenuation Switch: 0/-10 dB
- Max. input Level: Pos. 1 (0 dB) = 88 dBµV
- Max. input Level: Pos. 2 (10 dB att.) = 98 dBµV
- DiSEqC Support: 1.0 / 1.1 / 1.2
- Multiswitch Support: 5/8 (Sat A/B), 17/8 (Sat A/B/C/D)
- Power Consumption: 0.7 Watts

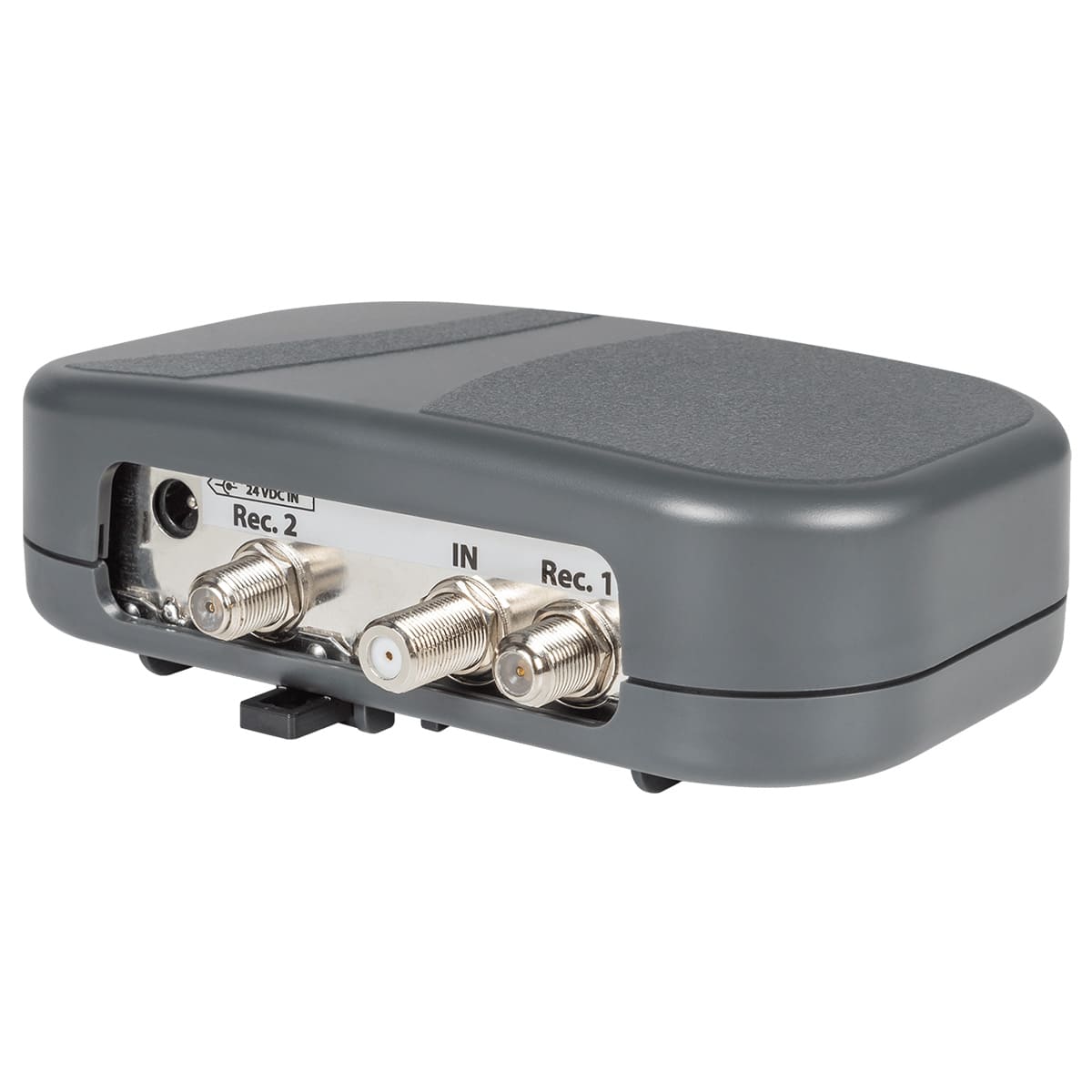

Technical Info (Destacker)
- Inputs: 1x 5-3550 MHz (with F High Quality)
- Receiver Output 1: 5-2150 MHz
- Receiver Output 2: 950-2150 MHz
- Attenuation Terrestrial: -1 dB
- Attenuation Satellite: -4 dB
- Attenuation Satellite Converted: +4 dB
- Max. input Level: 93 dBµV
- Power Supply: 24 V DC 500 mA (min. 18 V DC, 1A)
- Power Consumption: 0.7 Watts

Delivery
1x Megasat Stacker DE-Stacker Multi-Converter
1x User Manual
