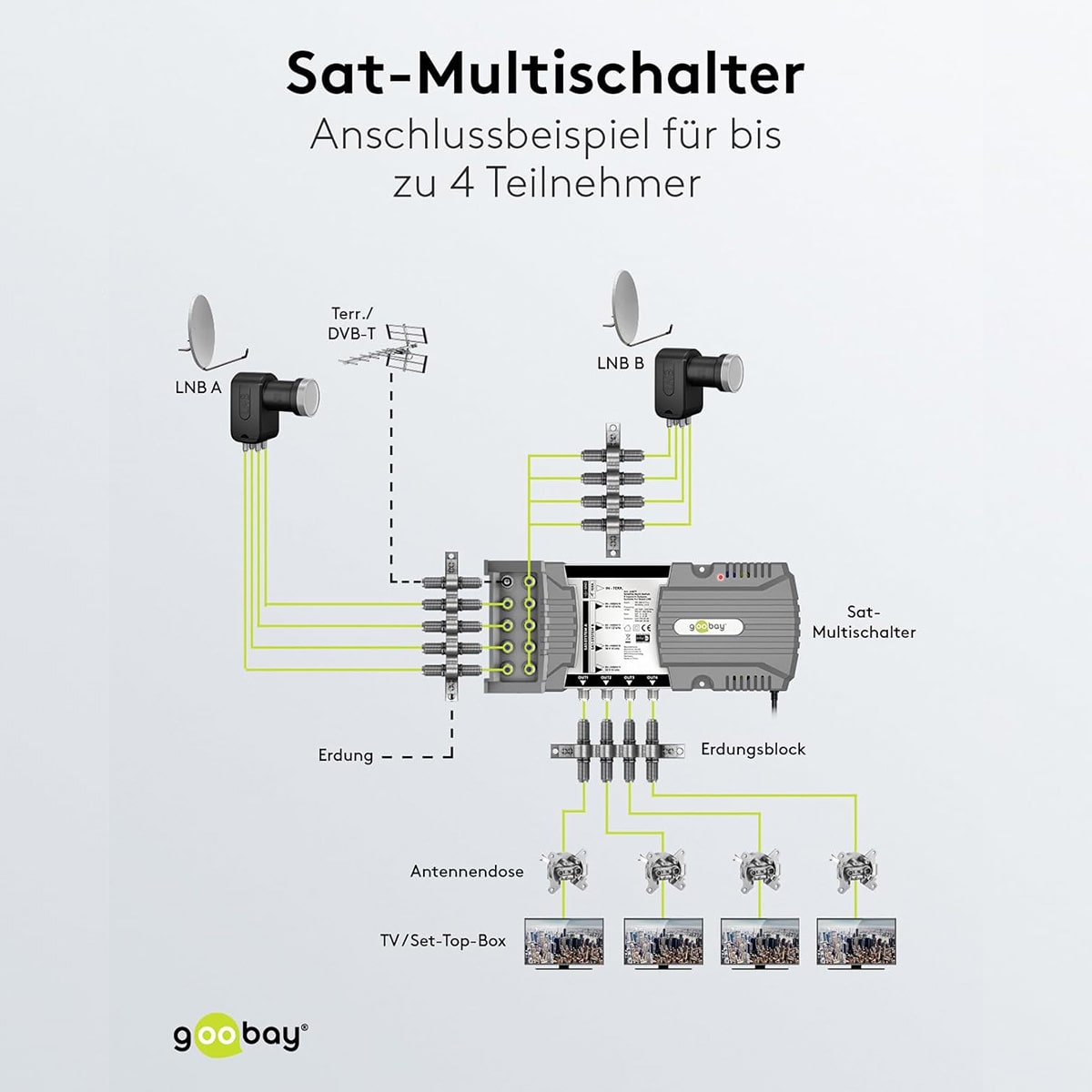

Experience the ultimate versatility and flexibility in TV reception with Goobay's state-of-the-art multiswitch. This smart switch allows you to connect multiple receiving devices in your home to two satellite dishes. Whether you want to enjoy high-resolution television in 4K or 8K UHD, receive individual programs for each participant or use terrestrial signals for antennas - this multiswitch offers the perfect solution.

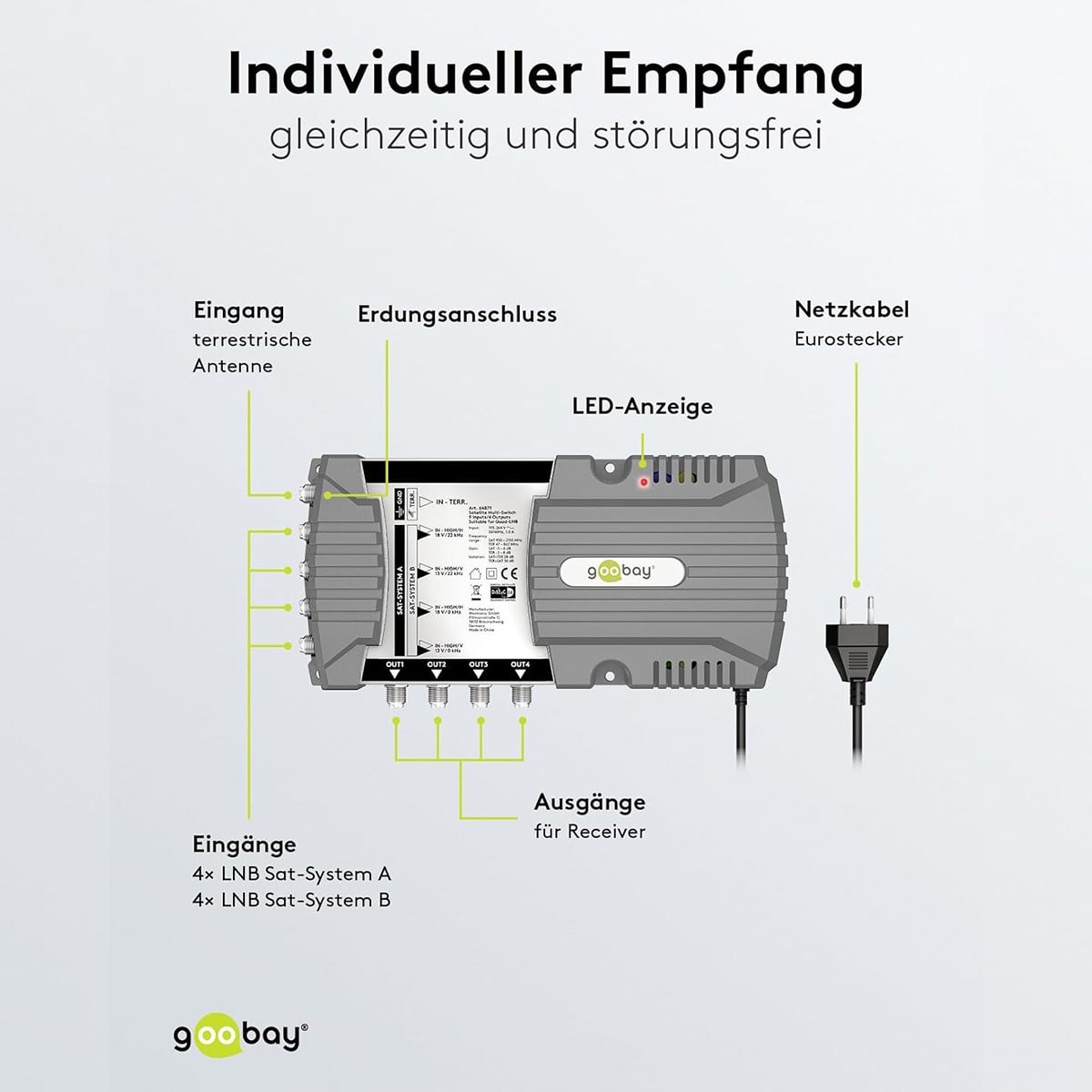

Features - Device Connections: 4/8/12/16* - Supports HD, 4K, 8K UHD - Up to 2 LNBs can be connected at the same time - DiSEqC 2.0 for Satellite Switching - Suitable for Quad and Quattro LNBs - Energy Saving and short circuit proof - Excellent signal transmission and shielding
* The number of participants varies depending on the variant selected.
Technical Info - Device Connections: 4/8/12/16* - DiSEqC: v2.0 - Switching Commands: 13/0; 18/0; 13/22; 18/22V/kHz - Input, Type: F Socket x In - Input Voltage (AC): 230V - Input, Number: 9 x IN - Output Type: F Socket - SAT Frequency Range: 950 - 2,150 MHz - Terrestrial Frequency Range: 47 - 862 MHz - Polarization Decoupling SAT: 28 - 30 dB - Output Level SAT: 100 dBµV - Transmission Types: DVB-S, DVB-S2, DVB-T, DVB-T2 - Return Loss SAT Inputs: 10 dB - Return Loss SAT Outputs: 8 dB - Wave Impedance: 75 O - Output Level Terr.: 88 dBµV - Return Loss Terr. Inputs: 8dB - Return Loss Terr. Outputs: 8dB - Operating Temperature: 0°C - 50°C
* The number of participants varies depending on the variant selected.
Dimension & Weight - Dimension of 9/4: 233.5 x 55.1 x 118.5 mm* - Dimension of 9/8: 233.5 x 55.1 x 128.4 mm* - Dimension of 9/12: 273.5 x 55.1 x 128.4 mm* - Dimension of 9/16: 313.5 x 55.1 x 128.4 mm* - Weight of 9/4: 650 g* - Weight of 9/8: 675 g* - Weight of 9/12: 770 g* - Weight of 9/16: 860 g*
* The dimensions vary depending on the variant selected.
Delivery 1x Goobay Multiswitch 9 Inputs for 2 Satellites & 4/8/12/16 Participants* 1x Power Supply 230-V (Euro Plug) 1x User Manual
* The scope of delivery varies depending on the variant selected.
