This product is currently not available.

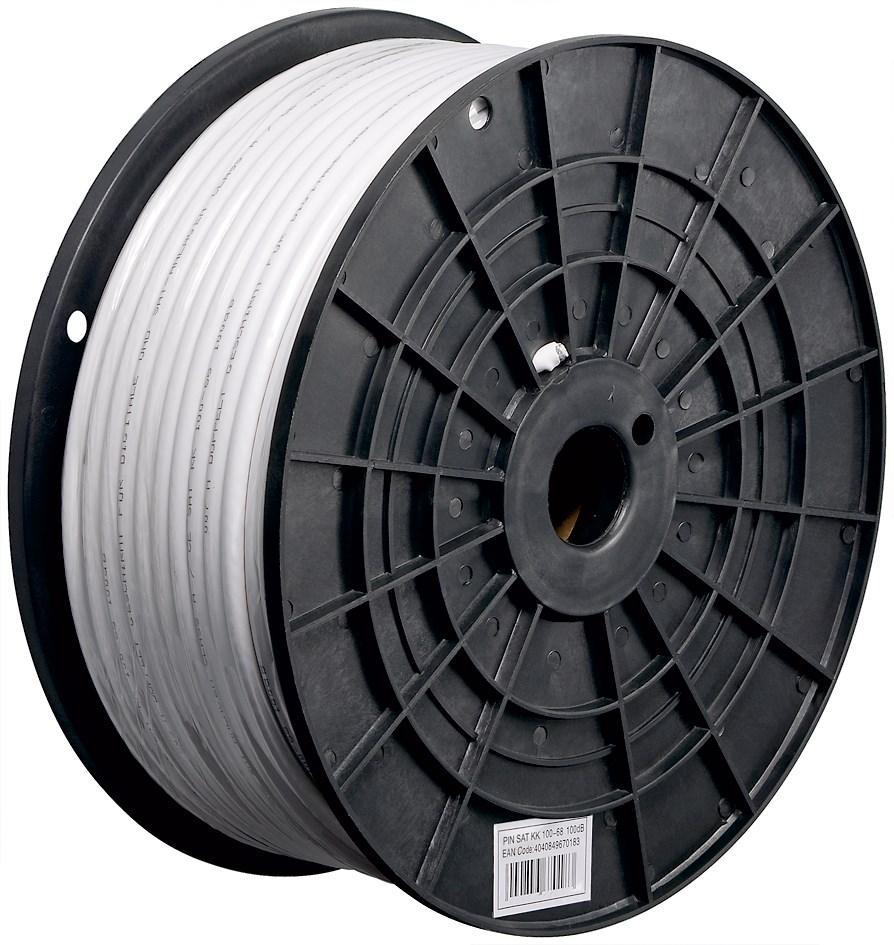

Koax Sat Kabel KKS HQ Kupfer 125dB 5fach A++ 100m Spule
- Item no.: MONKOA-033
Getestet und eingestuft in Klasse A++ (nach EN 50117) digitaltauglich für die Hausinstallation... more
Getestet und eingestuft in Klasse A++ (nach EN 50117)
digitaltauglich für die Hausinstallation von HDTV per DVB-S/S2, DVB-T/T2, DVB-C/C2
fünffacher Signalschirm für erstklassigen Schutz über lange Distanzen
Innenleiter aus besonders leitfähigem und flexiblem Kupfer
Meterskalierung auf dem Kabel
Fünffach geschirmtes Digital - Satellitenkabel, HDTV 3D tauglich, Schirmungsmaß > 125 dB (entspricht der Schirmungsmaßverordnung)
Koaxial-Kabel (Cu), 125dB, 5fach geschirmt 100m auf Plastik-Spule, Klasse A ++
Technische Daten:
Dämpfung bei 20°C in dB/100 m
100 MHz - 4,9 dB
200 MHz - 6,7 dB
300 MHz - 8,5 dB
500 MHz - 11,9 dB
800 MHz - 15,3 dB
1000 MHz - 17,4 dB
1350 MHz - 21,3 dB
1750 MHz - 23,9 dB
2050 MHz - 27,3 dB
Innenleiter 1,13 mm Cu
Aussendurchmesser 8,1 mm
Schirmungsmaß >125 dB
Schirmung fünf fach
1. Schirm AL-Folie
2. Geflecht 128
3. Schirm AL-Folie
4. Geflecht 96
5. Schirm AL-Folie
Länge 100 m
Verpackungsart Kunststoffspule
Impedanz 75 ohm
digitaltauglich für die Hausinstallation von HDTV per DVB-S/S2, DVB-T/T2, DVB-C/C2
fünffacher Signalschirm für erstklassigen Schutz über lange Distanzen
Innenleiter aus besonders leitfähigem und flexiblem Kupfer
Meterskalierung auf dem Kabel
Fünffach geschirmtes Digital - Satellitenkabel, HDTV 3D tauglich, Schirmungsmaß > 125 dB (entspricht der Schirmungsmaßverordnung)
Koaxial-Kabel (Cu), 125dB, 5fach geschirmt 100m auf Plastik-Spule, Klasse A ++
Technische Daten:
Dämpfung bei 20°C in dB/100 m
100 MHz - 4,9 dB
200 MHz - 6,7 dB
300 MHz - 8,5 dB
500 MHz - 11,9 dB
800 MHz - 15,3 dB
1000 MHz - 17,4 dB
1350 MHz - 21,3 dB
1750 MHz - 23,9 dB
2050 MHz - 27,3 dB
Innenleiter 1,13 mm Cu
Aussendurchmesser 8,1 mm
Schirmungsmaß >125 dB
Schirmung fünf fach
1. Schirm AL-Folie
2. Geflecht 128
3. Schirm AL-Folie
4. Geflecht 96
5. Schirm AL-Folie
Länge 100 m
Verpackungsart Kunststoffspule
Impedanz 75 ohm
