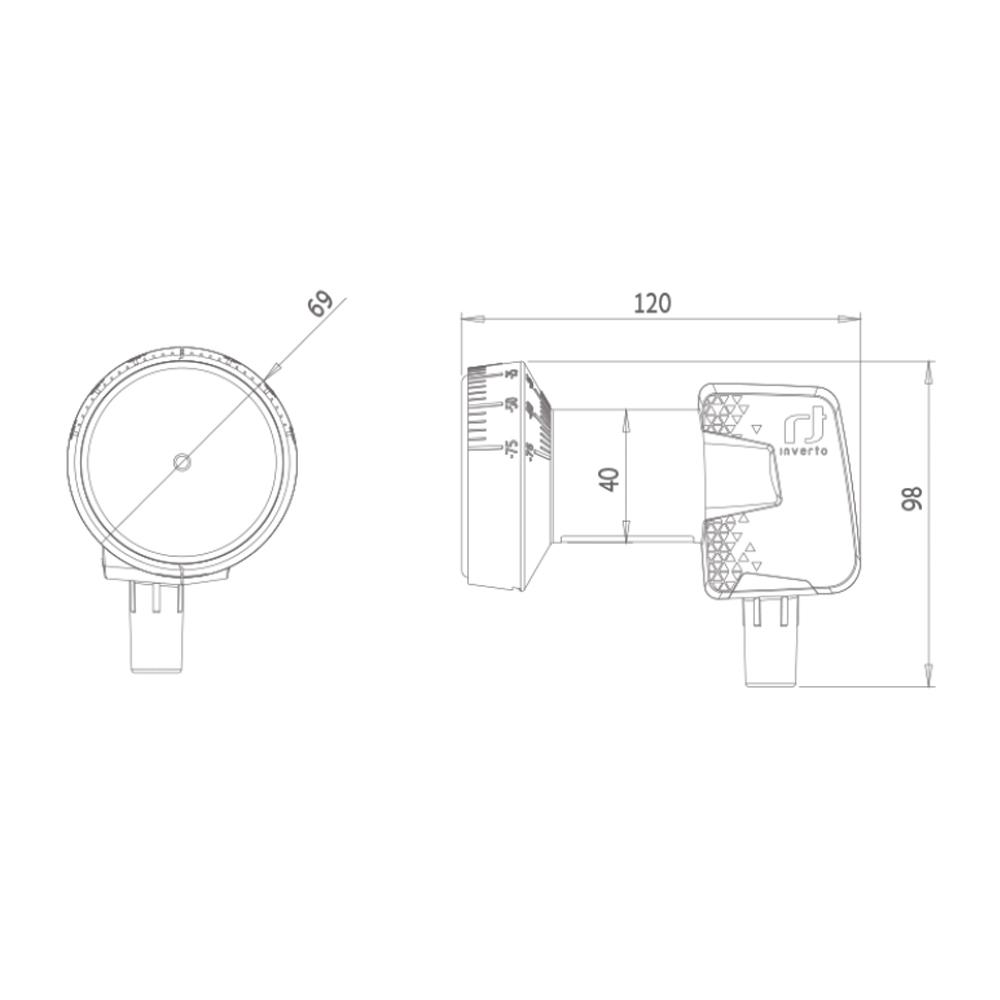

Inverto Home Pro IDLH-SNL410-HMPRO HQ Single PLL ULN 4K LNB 0.3dB
- Item no.: LNBSIN055
Specially engineered to meet the demand of the global DTH market for competitive and 4G / LTE... more
Specially engineered to meet the demand of the global DTH market for competitive and 4G / LTE protected LNBs. With the latest chipset technology and waveguide design, this LNB offers optimized reception capabilities. It allows the reception of satellite TV and radio from a satellite and its distribution to a set-top box. The LNB supports HD and UHD transmissions, has excellent RF levels, very low power consumption and is designed to optimally suppress interference from 4G / LTE signals. Designed and manufactured to the highest quality standards in the industry to meet stringent specifications, this LNB is an ideal solution for DTH operators worldwide satellite broadcasting.
Key Features:
Low phase noise, compliant with DVB-S2 (HD and UHD)
Low noise figure
Low energy consumption
High cross polarization suppression
High frequency stability
Technical specifications:
Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range 950 MHz ~ 2150 MHz
Oscillator Frequency (LO) Lowband 9.75 GHz
Oscillator Frequency (LO) High Band 10.6 GHz
Noise figure 0.3 dB typ. (0.7 dB max.)
LO frequency accuracy @ 25 ° C ± 500 kHz max.
LO temperature drift ± 1.0 MHz max.
Oscillator (LO) phase noise (10 kHz) -80 dBc / Hz max.
Gain 55 dB min.
Gain ripple (within 26 MHz bandwidth) ± 0.75 dB
Gain fluctuation (in full band) ± 4 dB
Image rejection 40 dB min.
3rd order intermodulation products - ICP3 10 dBm min.
1 dB compression point (at the output) 0 dBm min.
Cross polarization suppression 22 dB min.
Control signal Ca (V) 11.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4 V ~ 0.8V pp
Output VSWR 2.5: 1
In-band interference -60 dBm max.
Current consumption 95 mA
Operating temperature -30 ° C ~ +60 ° C
Output impedance 75 o
Output connection F-type (w)
Antennas F / D ratio 0.6
Weight 136 g
Delivery:
Inverto Home Pro IDLH-SNL410-HMPRO Single PLL ULN LNB 0.3dB
Key Features:
Low phase noise, compliant with DVB-S2 (HD and UHD)
Low noise figure
Low energy consumption
High cross polarization suppression
High frequency stability
Technical specifications:
Input frequency range 10.7 GHz ~ 12.75 GHz
Output frequency range 950 MHz ~ 2150 MHz
Oscillator Frequency (LO) Lowband 9.75 GHz
Oscillator Frequency (LO) High Band 10.6 GHz
Noise figure 0.3 dB typ. (0.7 dB max.)
LO frequency accuracy @ 25 ° C ± 500 kHz max.
LO temperature drift ± 1.0 MHz max.
Oscillator (LO) phase noise (10 kHz) -80 dBc / Hz max.
Gain 55 dB min.
Gain ripple (within 26 MHz bandwidth) ± 0.75 dB
Gain fluctuation (in full band) ± 4 dB
Image rejection 40 dB min.
3rd order intermodulation products - ICP3 10 dBm min.
1 dB compression point (at the output) 0 dBm min.
Cross polarization suppression 22 dB min.
Control signal Ca (V) 11.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4 V ~ 0.8V pp
Output VSWR 2.5: 1
In-band interference -60 dBm max.
Current consumption 95 mA
Operating temperature -30 ° C ~ +60 ° C
Output impedance 75 o
Output connection F-type (w)
Antennas F / D ratio 0.6
Weight 136 g
Delivery:
Inverto Home Pro IDLH-SNL410-HMPRO Single PLL ULN LNB 0.3dB
