EMP Centauri Profi-Line S4/2PCN-W2 (P.166-W) DiSEqC 2.0 Switch 4 Inputs/2 Outputs
- Item no.: MONDIS081
4in/2out double DiSEqC 2.0 switch for two satellite positions and 2 users (or two tuners). It is... more

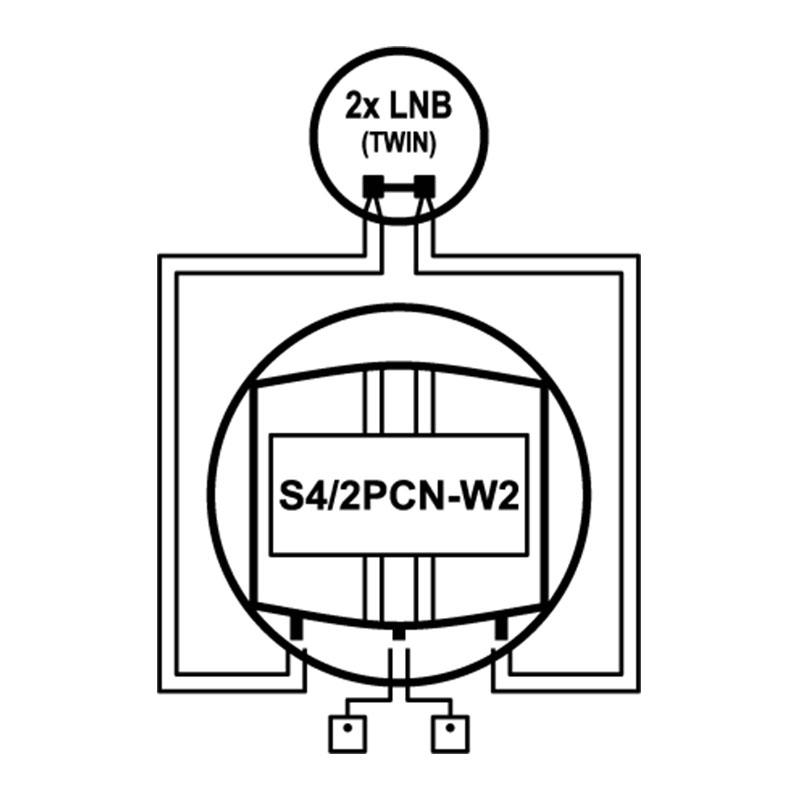

4in/2out double DiSEqC 2.0 switch for two satellite positions and 2 users (or two tuners). It is used to switch between two twin LNBs with the command "Position" (receiver setting A/B).
Technical Info:
- Inputs/Outputs: 4/2
- Control: DiSEqC 1.0 (2.0)
- DC Passage Max .: 400 mA
- Through Loss: 5dB max.
- Crosstalk Attenuation: 25 dB min.
- Frequency Range: 950-2300 MHz
- Dimensions: 11.2 x 11.2 x 4.9 cm
- Ambient Temperature: -30 ~ +70 °C
- Power Requirement: 30 mA (18V) + LNB from satellite receiver
Delivery:
1x EMP-Centauri DiSEqC Switch S4/2PCN-W2 (P.166-W)
1x Installation/Operating Instructions
2x Cable Ties
Technical Info:
- Inputs/Outputs: 4/2
- Control: DiSEqC 1.0 (2.0)
- DC Passage Max .: 400 mA
- Through Loss: 5dB max.
- Crosstalk Attenuation: 25 dB min.
- Frequency Range: 950-2300 MHz
- Dimensions: 11.2 x 11.2 x 4.9 cm
- Ambient Temperature: -30 ~ +70 °C
- Power Requirement: 30 mA (18V) + LNB from satellite receiver
Delivery:
1x EMP-Centauri DiSEqC Switch S4/2PCN-W2 (P.166-W)
1x Installation/Operating Instructions
2x Cable Ties
