HD Twin Tuner TV card - also DVB-T2 SimpliTV Austria ORF transmitter - TV card (PC) DVB-C,... more

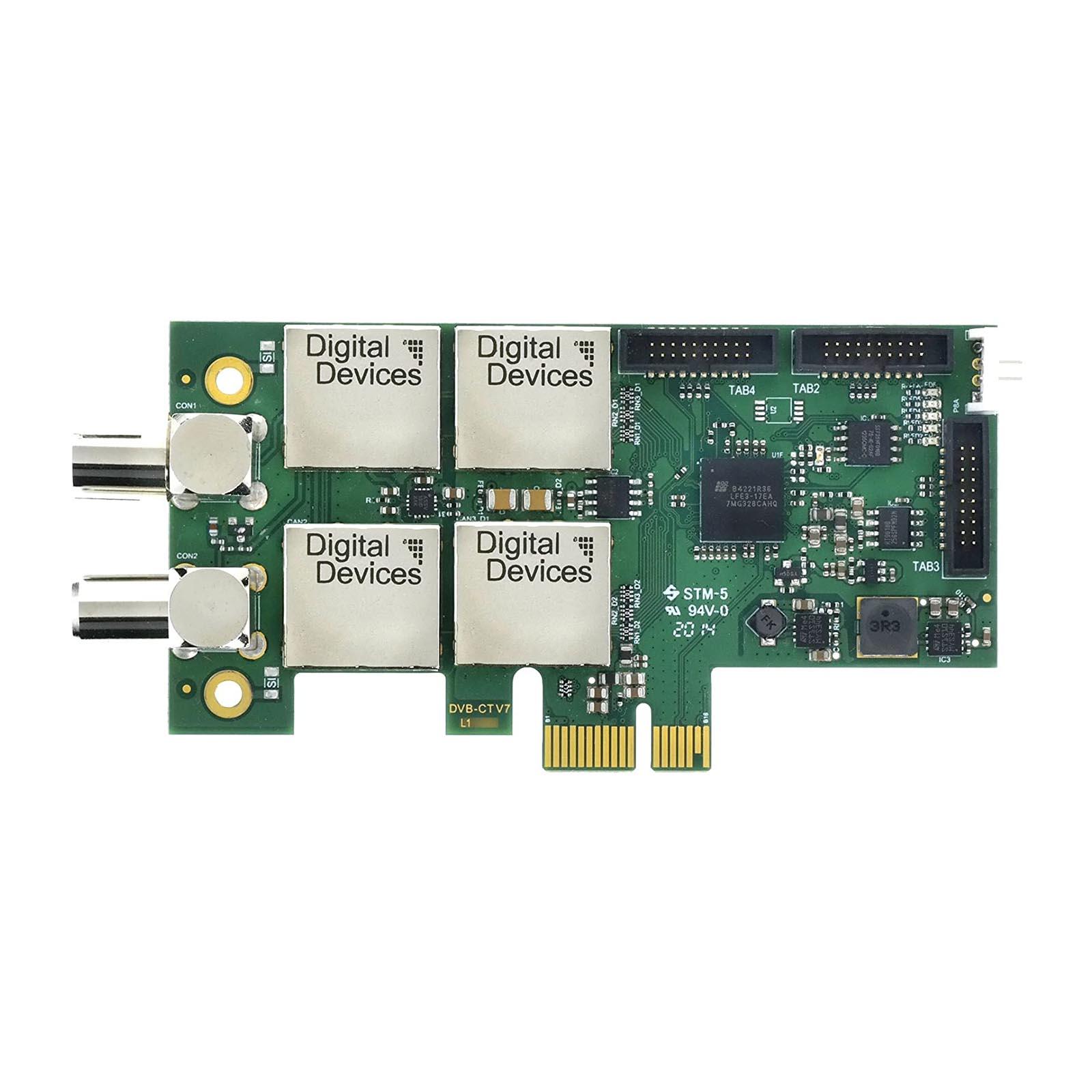

HD Twin Tuner TV card - also DVB-T2 SimpliTV Austria ORF transmitter - TV card (PC) DVB-C, DVB-C2, DVB-T, DVB-T2, ISDB-T and digital radio via cable or terrestrial for the PCI Express Slot.
Brilliant HDTV on your PC
The Ultra-Low Profile PCI Express card transforms a compact PC system into a media center PC for your living room with double TV enjoyment, thanks to the 2 TV tuners (twin tuners) that can be used in parallel. With the Digital Devices Cine C2T2I (Rev. V7) you are ready to receive at any time. Receive digital cable radio and cable television (DVB-C and DVB-C2) as well as digital terrestrial television / radio via antenna (DVB-T, DVB-T2, ISDB-T).
Digital Devices Cine C2T2I is supplied with the DD-TV software. Experience the numerous functions: HD quality television, time-shift television, digital video recorder, electronic program guide (EPG), teletext reception.
The Digital Devices Cine C2T2I (Rev. V7) is modularly expandable thanks to its three expansion connections. So you can expand your system up to 8 TV tuners using only one (!) PCI Express slot. Any combination with additional TV tuners (twin tuners) and CI interface extensions are possible. A cross-reception combination (mixed operation) of satellite TV, cable TV and digital terrestrial TV is also possible at any time if required. Discover the numerous expansion options.
Cable TV customers (reception via DVB-C / C2)
In Germany, you can usually receive the public TV programs (ARD, ZDF, third-party programs and many radio stations) in HD quality without a SmartCard with a TV cable connection. For some customers with a cable connection (e.g. Kabel Deutschland, Kabel BW and Unitymedia), numerous private TV programs can also be received digitally free in the cable. Optional: For the complete reception of all programs (the scope depends on your contract with the content provider) use our CI-Interface extension. This can be connected directly to your digital devices card.
Compatible with Windows Media Center
Our products can be used immediately under the Windows Media Center, including the optional direct support of the CI interface, without complications.
(DVB-T2 reception is currently not possible in Windows® Media Center due to restrictions in Windows Media Center)
* SimpliTV Austria.
A CI expansion module is required for the Simpli TV module. The SimpliTV module was tested with the ORF (Austrian Broadcasting) transmitters via 2 tuners simultaneously (MTD).
Features:
HDTV reception - 1080p
Timeshift & Live TV
2x DVB-C / C2 (cable tuner)
2x DVB-T / T2 / ISDB-T (terrestrial tuner)
An antenna cable supplies both tuners
Connection via PCIe x1 to x16 slot
Support for many TV applications
e.g. Microsoft Windows® Media Center 7/8, DVBViewer
DVBViewer, Media Portal, VDR, MythTV
New transmission method
Prepared differential connection of the data cable (LVDS)> 400% more data throughput (UltraHD)
Downward compatible with the classic transmission method with 80 MBit
Expandable module system with 3 expansion connections
3 further DVB-S2 and / or DVB-C / T (cable / terrestrial) cards or common interfaces can be connected in all possible combinations (max. 8 tuners)
DVB-T2 features
DVB-T2 specification versions: 1.1.1, 1.2.1 and 1.3.1
DVB-T2 Base Profile
DVB-T2 Lite (!) Profiles
ISDB-T features
Conforms to ARIB STD-B31
6 MHz, 7 MHz and 8 MHz BW support
Excellent phase noise resistance
Excellent multipath equalization performance
Automatic detection of mode / guard interval lengths
EWS (Emergency Warning System) flag output
Single cable solution (master / slave)
An antenna cable supplies both tuners
Suitable for very compact housings
The slot plates for half and full height are included in the scope of delivery. The installation of up to 4 tuners on a slot plate is possible
PCIexpress
Connection via PCIe x1 to x16 slot
Safety
Produced and developed according to European standards, DIN EN ISO 9001: 2000
Environmentally friendly green IT
Power consumption only about 3.5 watts
Without tantalum capacitors
Without electrolytic capacitors
Supported Operating Systems
Microsoft Windows® XP / 7/8 (.1) / 10
Linux (from kernel 2.6.34)
Power consumption
PCIe compliant
3.5 watts
Supported Operating Systems
Linux (from kernel 2.6.34)
Microsoft Windows® XP (SP3)
Microsoft Windows® Vista
Microsoft Windows® 7 (32/64 bit)
(incl.Windows® Media Center)
Microsoft Windows® 8 (32/64 bit)
(incl.Windows® Media Center)
Microsoft Windows® 10 (32/64 bit)
System requirements
Dual Core Intel® or AMD® CPU
512 MB RAM
one free PCIe slot (x1 to x16)
Dimensions
L 100mm, W 54mm, D 14mm
Delivery:
1x Sales Packaging
1x Cine Card
1x Full-Height Slot Bracket (Pre-Assembled)
1x Slot Bracket Half Height
1x Quick Installation Guide
1x Manual (online)
1x Driver (online)
1x Software DD-TV (online)
Brilliant HDTV on your PC
The Ultra-Low Profile PCI Express card transforms a compact PC system into a media center PC for your living room with double TV enjoyment, thanks to the 2 TV tuners (twin tuners) that can be used in parallel. With the Digital Devices Cine C2T2I (Rev. V7) you are ready to receive at any time. Receive digital cable radio and cable television (DVB-C and DVB-C2) as well as digital terrestrial television / radio via antenna (DVB-T, DVB-T2, ISDB-T).
Digital Devices Cine C2T2I is supplied with the DD-TV software. Experience the numerous functions: HD quality television, time-shift television, digital video recorder, electronic program guide (EPG), teletext reception.
The Digital Devices Cine C2T2I (Rev. V7) is modularly expandable thanks to its three expansion connections. So you can expand your system up to 8 TV tuners using only one (!) PCI Express slot. Any combination with additional TV tuners (twin tuners) and CI interface extensions are possible. A cross-reception combination (mixed operation) of satellite TV, cable TV and digital terrestrial TV is also possible at any time if required. Discover the numerous expansion options.
Cable TV customers (reception via DVB-C / C2)
In Germany, you can usually receive the public TV programs (ARD, ZDF, third-party programs and many radio stations) in HD quality without a SmartCard with a TV cable connection. For some customers with a cable connection (e.g. Kabel Deutschland, Kabel BW and Unitymedia), numerous private TV programs can also be received digitally free in the cable. Optional: For the complete reception of all programs (the scope depends on your contract with the content provider) use our CI-Interface extension. This can be connected directly to your digital devices card.
Compatible with Windows Media Center
Our products can be used immediately under the Windows Media Center, including the optional direct support of the CI interface, without complications.
(DVB-T2 reception is currently not possible in Windows® Media Center due to restrictions in Windows Media Center)
* SimpliTV Austria.
A CI expansion module is required for the Simpli TV module. The SimpliTV module was tested with the ORF (Austrian Broadcasting) transmitters via 2 tuners simultaneously (MTD).
Features:
HDTV reception - 1080p
Timeshift & Live TV
2x DVB-C / C2 (cable tuner)
2x DVB-T / T2 / ISDB-T (terrestrial tuner)
An antenna cable supplies both tuners
Connection via PCIe x1 to x16 slot
Support for many TV applications
e.g. Microsoft Windows® Media Center 7/8, DVBViewer
DVBViewer, Media Portal, VDR, MythTV
New transmission method
Prepared differential connection of the data cable (LVDS)> 400% more data throughput (UltraHD)
Downward compatible with the classic transmission method with 80 MBit
Expandable module system with 3 expansion connections
3 further DVB-S2 and / or DVB-C / T (cable / terrestrial) cards or common interfaces can be connected in all possible combinations (max. 8 tuners)
DVB-T2 features
DVB-T2 specification versions: 1.1.1, 1.2.1 and 1.3.1
DVB-T2 Base Profile
DVB-T2 Lite (!) Profiles
ISDB-T features
Conforms to ARIB STD-B31
6 MHz, 7 MHz and 8 MHz BW support
Excellent phase noise resistance
Excellent multipath equalization performance
Automatic detection of mode / guard interval lengths
EWS (Emergency Warning System) flag output
Single cable solution (master / slave)
An antenna cable supplies both tuners
Suitable for very compact housings
The slot plates for half and full height are included in the scope of delivery. The installation of up to 4 tuners on a slot plate is possible
PCIexpress
Connection via PCIe x1 to x16 slot
Safety
Produced and developed according to European standards, DIN EN ISO 9001: 2000
Environmentally friendly green IT
Power consumption only about 3.5 watts
Without tantalum capacitors
Without electrolytic capacitors
Supported Operating Systems
Microsoft Windows® XP / 7/8 (.1) / 10
Linux (from kernel 2.6.34)
Power consumption
PCIe compliant
3.5 watts
Supported Operating Systems
Linux (from kernel 2.6.34)
Microsoft Windows® XP (SP3)
Microsoft Windows® Vista
Microsoft Windows® 7 (32/64 bit)
(incl.Windows® Media Center)
Microsoft Windows® 8 (32/64 bit)
(incl.Windows® Media Center)
Microsoft Windows® 10 (32/64 bit)
System requirements
Dual Core Intel® or AMD® CPU
512 MB RAM
one free PCIe slot (x1 to x16)
Dimensions
L 100mm, W 54mm, D 14mm
Delivery:
1x Sales Packaging
1x Cine Card
1x Full-Height Slot Bracket (Pre-Assembled)
1x Slot Bracket Half Height
1x Quick Installation Guide
1x Manual (online)
1x Driver (online)
1x Software DD-TV (online)
