This product is currently not available.

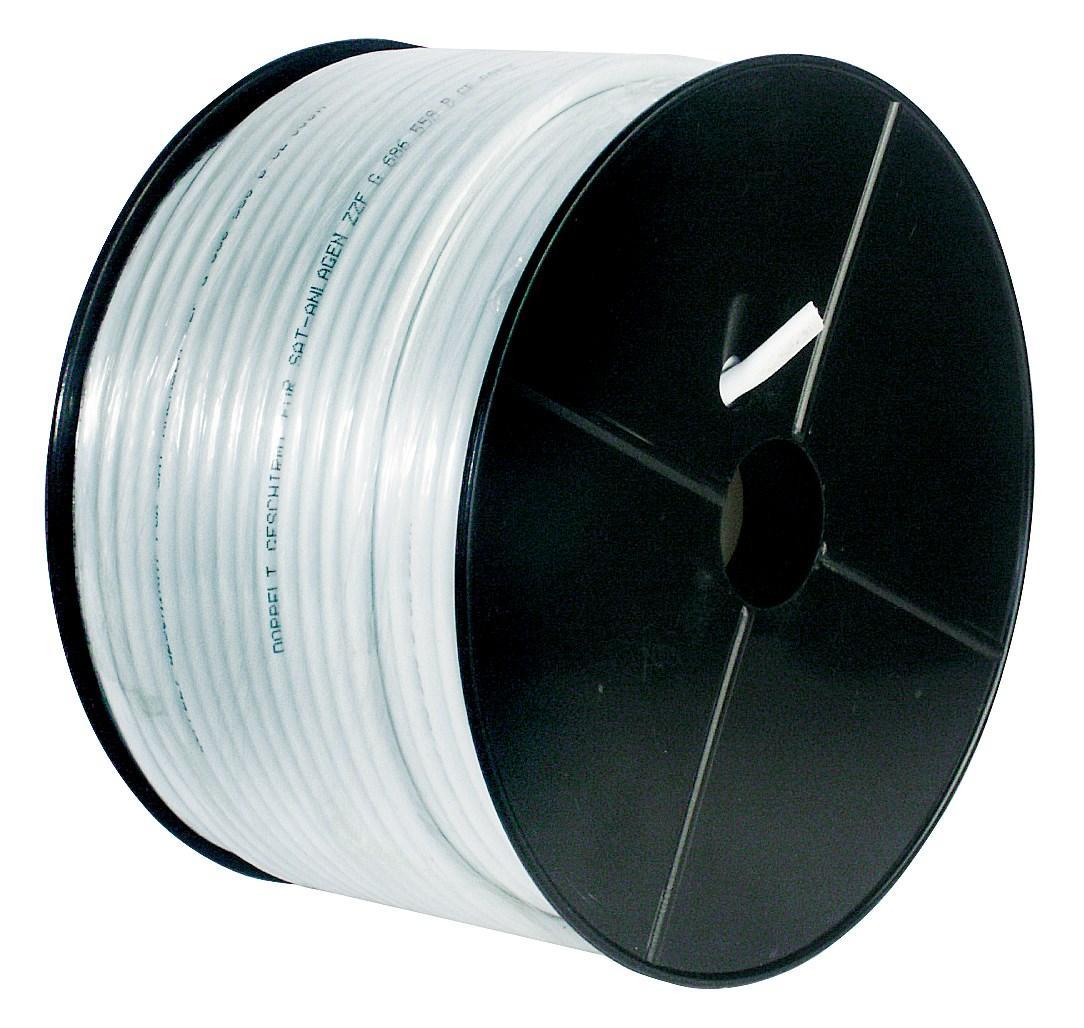

Coax satellite cable 4mm 80dB HQ Cu double shielded 100m
Goobay 80dB coax antenna cable, 2x shielded, CU Digitally suitable for the house installation of HDTV via DVB-S / S2, DVB-T / T2, DVB-C / C2 double signal shield for adequate protection over long distances Inner conductor made of particularly conductive and flexible copper Meter scale on the cable
Attenuation at 20 ° C in dB / 100 m 100 MHz - 8.4 dB 200 MHz - 11.9 dB 300 MHz - 14.1 dB 500 MHz - 20.9 dB 800 MHz - 27.3 dB 1000 MHz - 31.7 dB 1350 MHz - 36.1 dB 1750 MHz - 41.4 dB 2050 MHz - 44.3 dB
Inner conductor: 0.7 mm Cu Outside diameter: 4.6 mm Shielding level:> 80 dB Shielding: double 1. Screen: AL foil 2nd braid: 64 Length: 100 m Packaging type: plastic spool Impedance: 75 ohms
required F-connector 4mm Art.No. MONSTE-002
