Cabelcon F-56W 5.1 Self Install Sealing ring F-compression 7mm coax cable

Mounting without any special tool - for 7 mm coax cable including seal on the cable side
Cabelcon Compression plug for Coax cable 7 mm with dielectric from 4.7 mm diameter (most cables with 1.1 mm inner conductor) suitable for 7mm coax cable

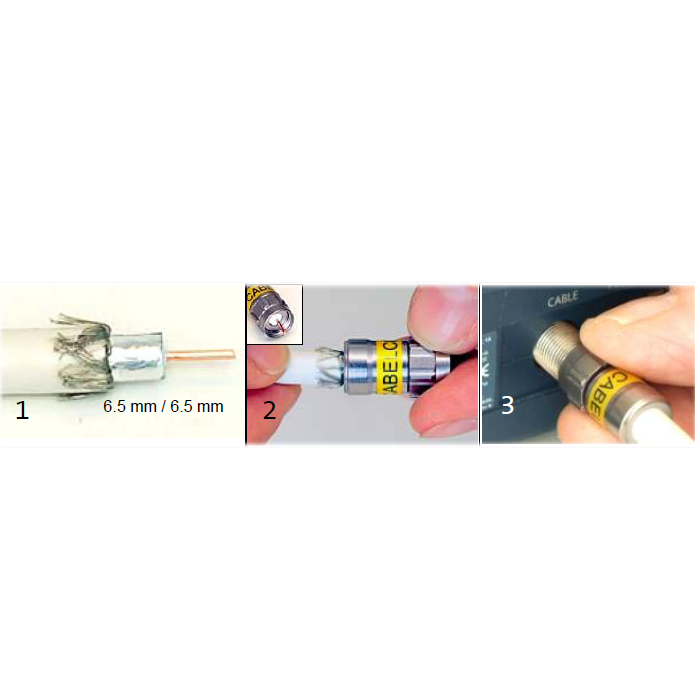

To attach the cable, the plug is simply plugged onto the stripped cable. When pulling on the cable, the plug is pressed, when tightening on the F-connector, the plug is finally pushed together and the compressor connection is stopped.



approved up to 3 GHz / wave resistance 75 Ohm
Shielding dimension: 30-862 MHz 110 dB / 862-3000 MHz 90 dB
Transfer Impedance 5-30 MHz <5 mOhm / m / reflux attenuation: at 1000 MHz 37 dB / at 3000 MHz 28 dB
Max. Current load - see cable data / Max. Tensile strength (overall) 200N



Technical specifications:
Operability up to 3 GHz
Wave resistance 75 Ohm
Shielding dimension 30-862 MHz 110 dB
Shielding dimension 862-3000 MHz 90 dB
Transfer impedance 5-30 MHz <5 mOhm
Backflow loss at 1000 MHz 37 dB
Backflow attenuation at 3000 MHz 28 dB
IMD (3rd order at 2x100 mW) -120dBc
IMD (IP3 value) +80 dBm
Max. Current load Cable data
Max. Tensile strength (overall) 200N
