Anadol Goldline 5/32 multiswitch 1 satellite 32 outputs 37 x gold-plated F-connectors

Compact multiswitch in a stylish housing. With a housing size of only 390x142x45 mm (without power supply), it does not have to hide technically. Due to its small design, it fits even in the smallest corner in the attic. The Anadol Gold Line 5/32 multi-switch is suitable for receiving 1 satellite and for up to 32 participants. A satellite receiver or a TV with integrated tuner can be connected to each of the 32 outputs.

The technology inside is proven by LNB technology that has been tried and tested millions of times. The satellite multiswitch Anadol 5/32 Goldline with Diseqc switching is interesting for everyone. Reception is only possible with a Quattro LNB. It is possible to feed a DVB-T / T2 antenna or a broadcast antenna.

Far and Away The Best
The Anadol Gold Line multiswitch 5/32 - with highly integrated high-frequency components in combination with a proven device mechanics ensure a balanced product with an excellent price-performance ratio.

Characteristics:
- External power supply (length approx. 158 cm)
- Gold-plated F connections
- mounting feet
- Terrestrial passive
- 37 F plugs for free
- HD, HD +, SKY, 4K, UHD compatible

Technical Data:
- Number of inputs: 4 sat 1 terrestrial
- Participant exits: 32
- Terr. Amplifier 88-790 MHz: yes
- Frequency range SAT / IF: 950 - 2150 MHz, frequency range terr .: 88 - 790 MHz
- Return loss inputs / outputs:> 8dB
- SAT-SAT decoupling:> 30 dB, SAT-TV decoupling:> 35 dB
- Max. Internal power consumption (from the power supply): 40mA
- Max. Remote supply voltage to LNB: 800mA 12V at LNB input HH
- Temp. Range + usage: -20 ° to + 60 ° C / dry interior
- Dimensions: 39 x 14.2 x 4.5 cm
- Weight including packaging: 1.2kg

Delivery:
- Anadol 5/32 multiswitch with mounting feet

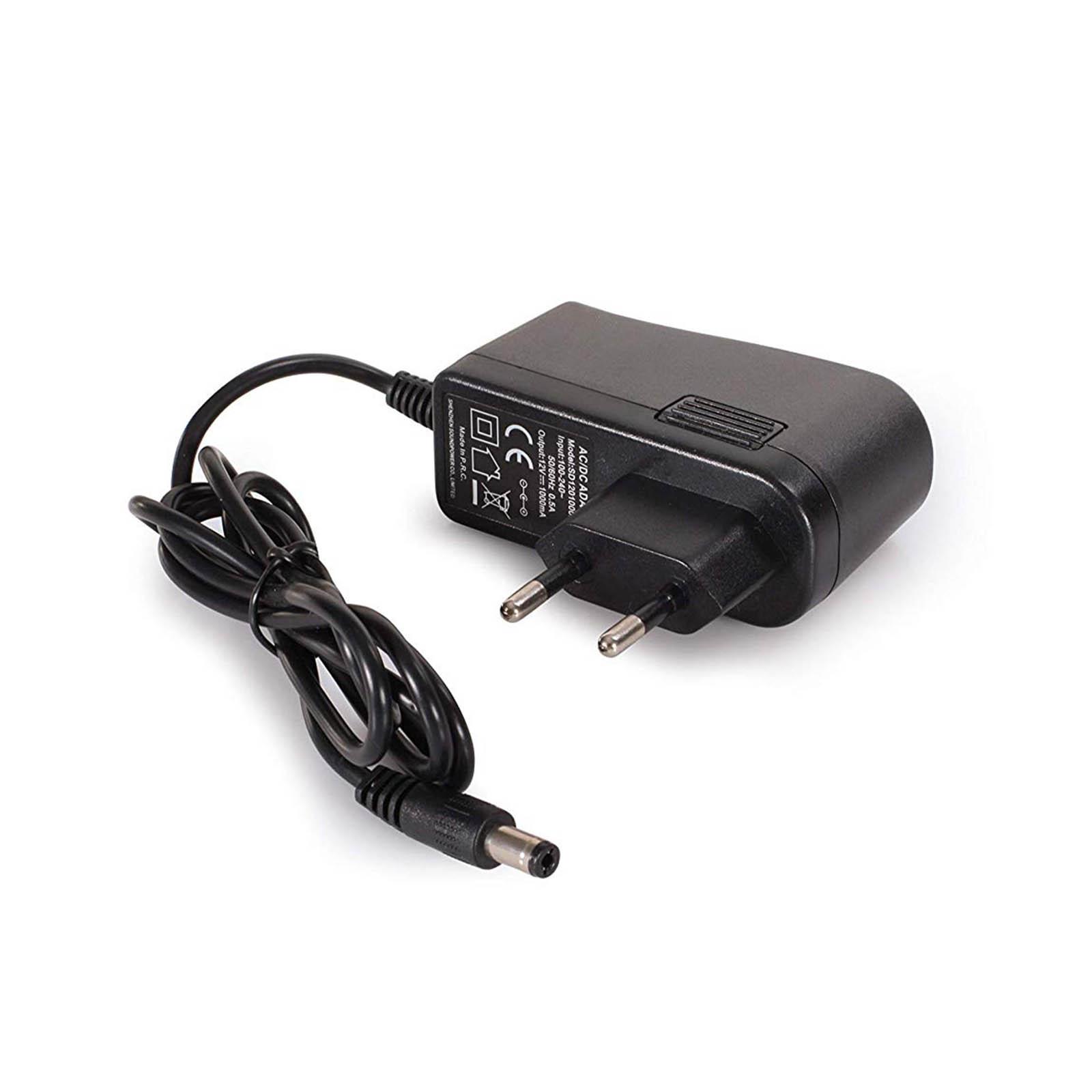

- external power supply

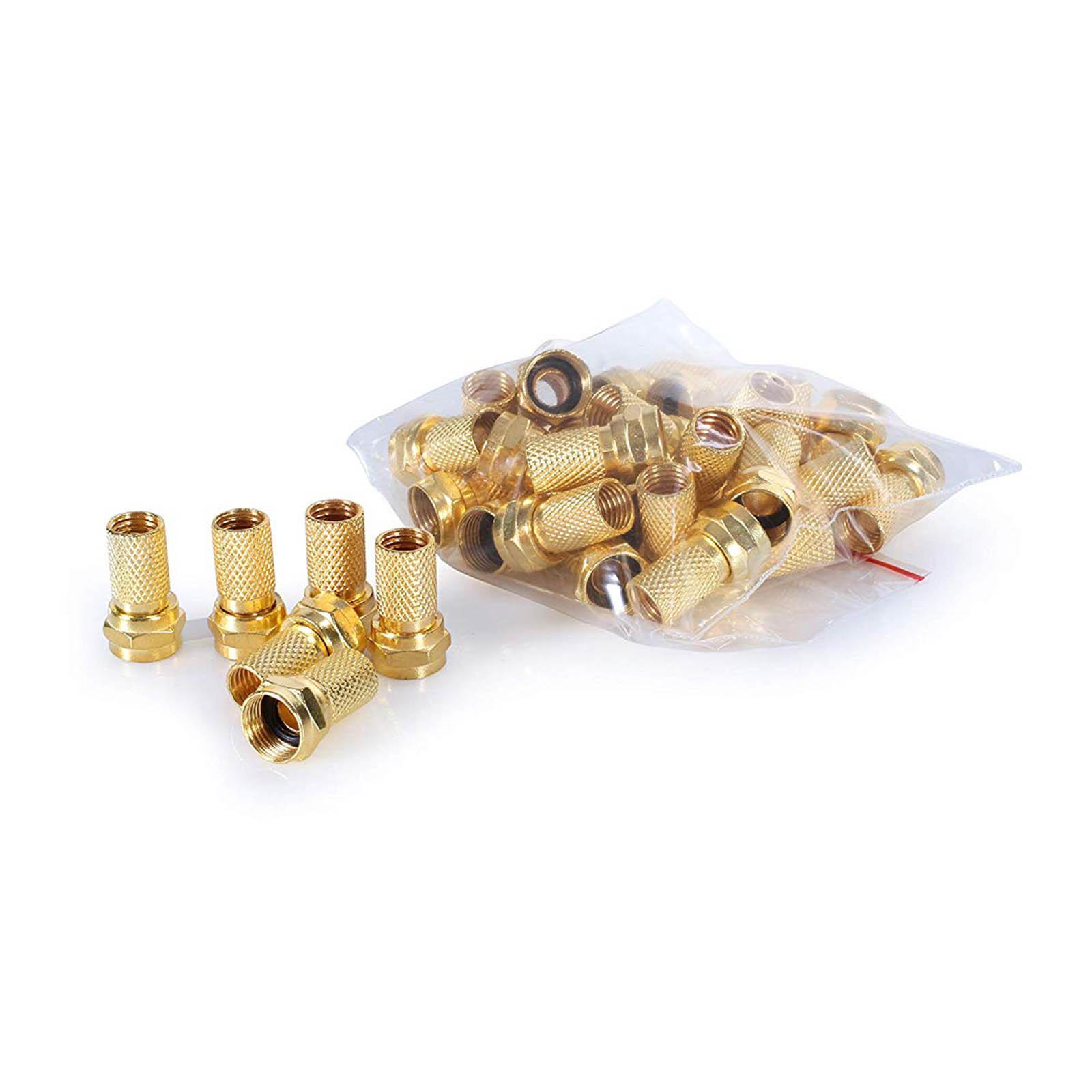

- 37 gold-plated F plugs
- Brief instructions in German & English
