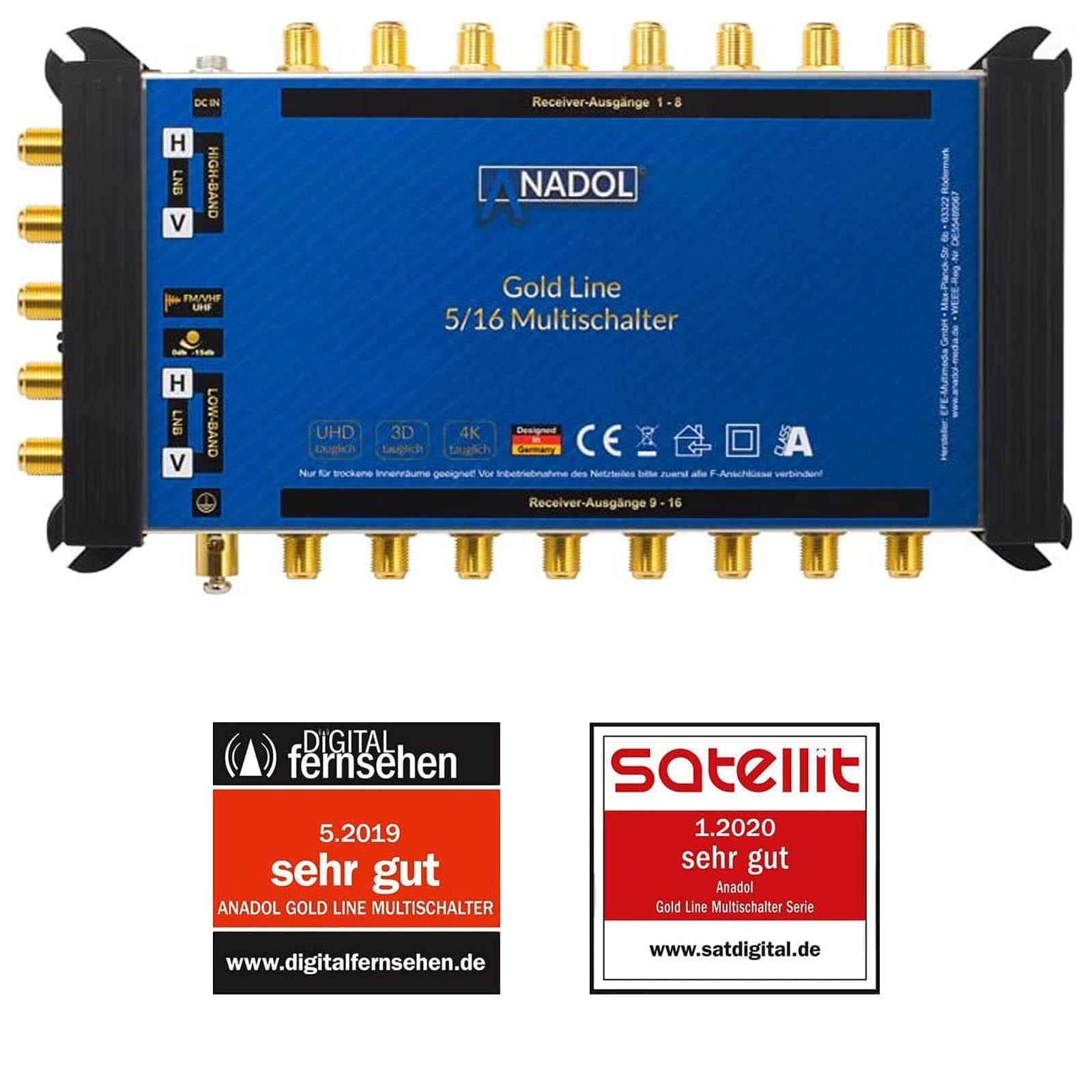

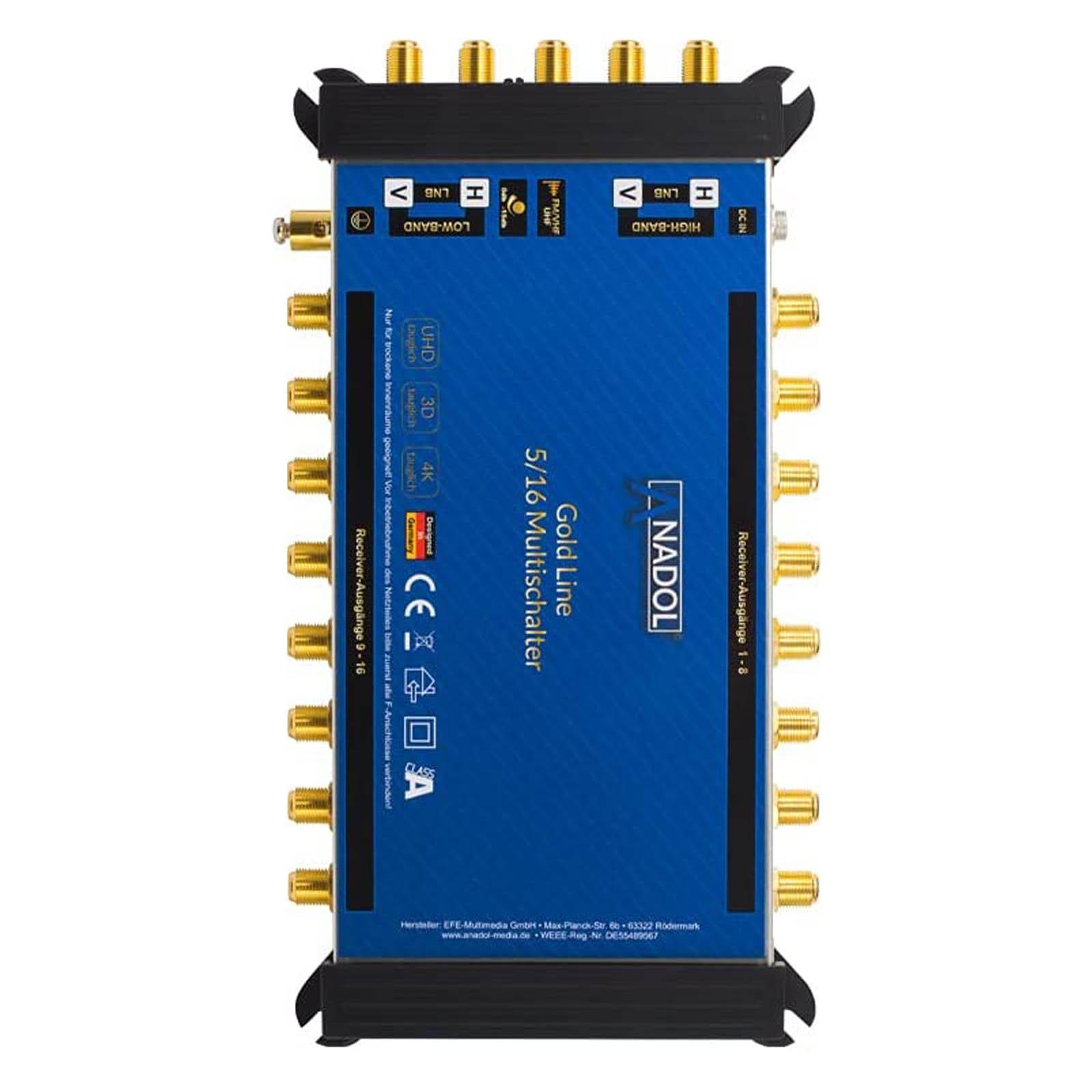

Anadol Goldline 5/16 multiswitch 1 satellite 16 outputs 21 x gold-plated F-connectors
- Item no.: MULANA005
Compact multiswitch in stylish housing. With a housing size of only 245x130x45 mm (without a... more
Compact multiswitch in stylish housing. With a housing size of only 245x130x45 mm (without a power supply unit), however, it does not have to hide technically. Due to its small design, it fits into even the smallest corner in the attic. The Anadol Goldline 5/16 multiswitch is suitable for receiving 1 satellite and for up to 16 participants. A satellite receiver or a TV set with an integrated tuner can be connected to each of the 16 outputs.
The technology inside is provided by LNB technology, which has been tried and tested a million times. The satellite multiswitch Anadol 5/16 Goldline with Diseqc switching is interesting for everyone. Reception is only possible with a Quattro LNB. Feeding in of a DVB-T / T2 antenna or a broadcast antenna is possible.
Unbeatable Good!
The Anadol Gold Line multiswitch 5/16 - with highly integrated high-frequency components in combination with tried and tested device mechanics ensures a balanced product at an excellent price-performance ratio.
Features
- External Power Supply
- HD, HD+, SKY, 4K, UHD, 3D-Compatible
- Gold-Plated F Connectors
- Terrestrial Passive
- Mounting Feet
- 21x F-Plugs
Technical Info
- Participant Exits: 16
- Number of Inputs: 4x Satellite/1x Terrestrial
- Terr. Amplifier 47-862 MHz: Yes
- Frequency Range SAT/IF: 950-2200 MHz
- Terrestrial Frequency Range: 47-862 MHz
- Return Loss Inputs/outputs:> 10dB/8dB
- SAT-SAT Decoupling:> 28dB
- Satellite TV Decoupling:> 30dB
- Max. Internal Power Consumption (from the power supply unit): 40 mA
- Max. Remote Feed Voltage to LNB: 1000mA 12V at the LNB input HH
- Temp. Range+ Use: -20° to +60° C/Dry Interiors
- Dimensions: 245 x 130 x 45 mm
- Weight Including Packaging: 850 g
Delivery
1x Anadol Gold Line 5/16 Multiswitch with Mounting Feet
1x Quick User Guide (German & English)
21x Gold-Plated F Connectors
1x External Power Supply
The technology inside is provided by LNB technology, which has been tried and tested a million times. The satellite multiswitch Anadol 5/16 Goldline with Diseqc switching is interesting for everyone. Reception is only possible with a Quattro LNB. Feeding in of a DVB-T / T2 antenna or a broadcast antenna is possible.
Unbeatable Good!
The Anadol Gold Line multiswitch 5/16 - with highly integrated high-frequency components in combination with tried and tested device mechanics ensures a balanced product at an excellent price-performance ratio.
Features
- External Power Supply
- HD, HD+, SKY, 4K, UHD, 3D-Compatible
- Gold-Plated F Connectors
- Terrestrial Passive
- Mounting Feet
- 21x F-Plugs
Technical Info
- Participant Exits: 16
- Number of Inputs: 4x Satellite/1x Terrestrial
- Terr. Amplifier 47-862 MHz: Yes
- Frequency Range SAT/IF: 950-2200 MHz
- Terrestrial Frequency Range: 47-862 MHz
- Return Loss Inputs/outputs:> 10dB/8dB
- SAT-SAT Decoupling:> 28dB
- Satellite TV Decoupling:> 30dB
- Max. Internal Power Consumption (from the power supply unit): 40 mA
- Max. Remote Feed Voltage to LNB: 1000mA 12V at the LNB input HH
- Temp. Range+ Use: -20° to +60° C/Dry Interiors
- Dimensions: 245 x 130 x 45 mm
- Weight Including Packaging: 850 g
Delivery
1x Anadol Gold Line 5/16 Multiswitch with Mounting Feet
1x Quick User Guide (German & English)
21x Gold-Plated F Connectors
1x External Power Supply
