This product is currently not available.

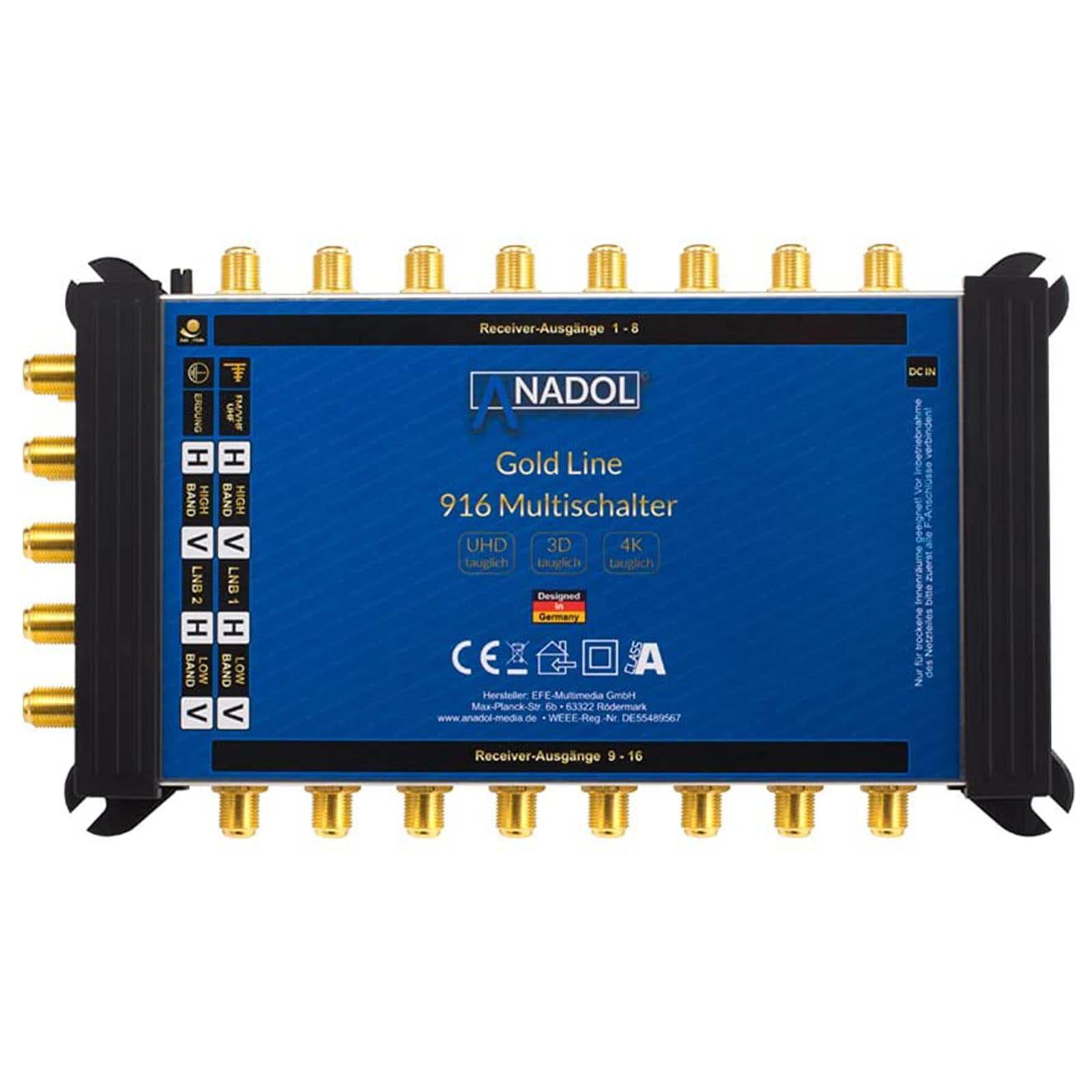

Anadol Gold Line 9/16 Multiswitch 2 Satellite 16 Outputs + 25 Gold-Plated F-Connectors

€109.90 *

plus VAT plus shipping

Free shipping in Germany!

Delivery date unknown

  • MULANA010
Compact multiswitch in stylish housing. With a housing size of only 225x130x45 mm (without power... more
Compact multiswitch in stylish housing. With a housing size of only 225x130x45 mm (without power supply), however, it does not have to hide technically. Due to its small design, it fits into even the smallest corner in the attic. The Anadol Gold Line 9/16 multiswitch is suitable for receiving 2 satellites and for up to 16 participants. A satellite receiver or a TV set with an integrated tuner can be connected to each of the 16 outputs.

The technology inside is provided by LNB technology, which has been tried and tested a million times over. The satellite multiswitch Anadol 9/16 Goldline with Diseqc switching is interesting for everyone. Feeding in of a DVB-T/T2 antenna or a broadcast antenna is possible. Reception is only possible with a Quattro LNB.

Unbeatable good!
The Anadol Gold Line multiswitch 9/16 - with highly integrated high-frequency components in combination with proven device mechanics ensures a balanced product at an excellent price-performance ratio.

Features
- External power supply
- Gold-plated F connectors
- mounting feet
- Terrestrial passive
- 25 F plugs free of charge
- HD, HD +, SKY, 4K, UHD, 3D-compatible

Technical Info
- Number of inputs: 8x satellite/1x terrestrial
- Participant exits: 16
- Terr. Amplifier 47-862 MHz
- Frequency range SAT/IF: 950 - 2250 MHz
- Terrestrial frequency range: 47 - 862 MHz
- Return loss inputs/outputs: 10dB/8dB
- SAT-SAT decoupling:> 28dB
- Satellite TV decoupling:> 30dB
- Max. Internal power consumption (from the power supply unit): 40 mA
- Max. Remote feed voltage to LNB: 1000mA 12V at the LNB input HH
- Dimensions: 22.5 x 13.0 x 4.5 cm

Delivery
1x Anadol 9/16 Multiswitch with Mounting Feet
1x External Power Supply
25x Gold-Plated F Connectors
1x Quick User Guide in German & English
