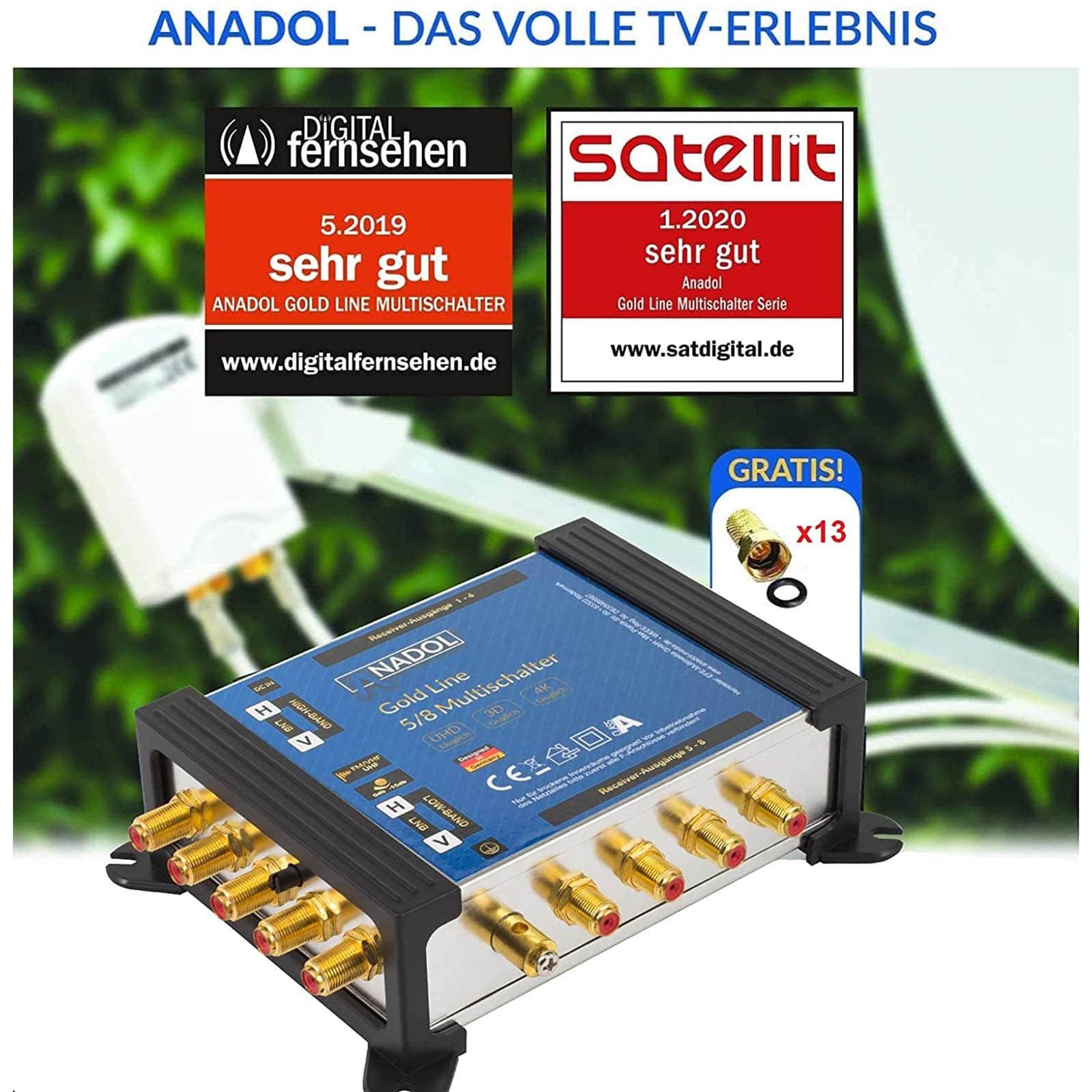

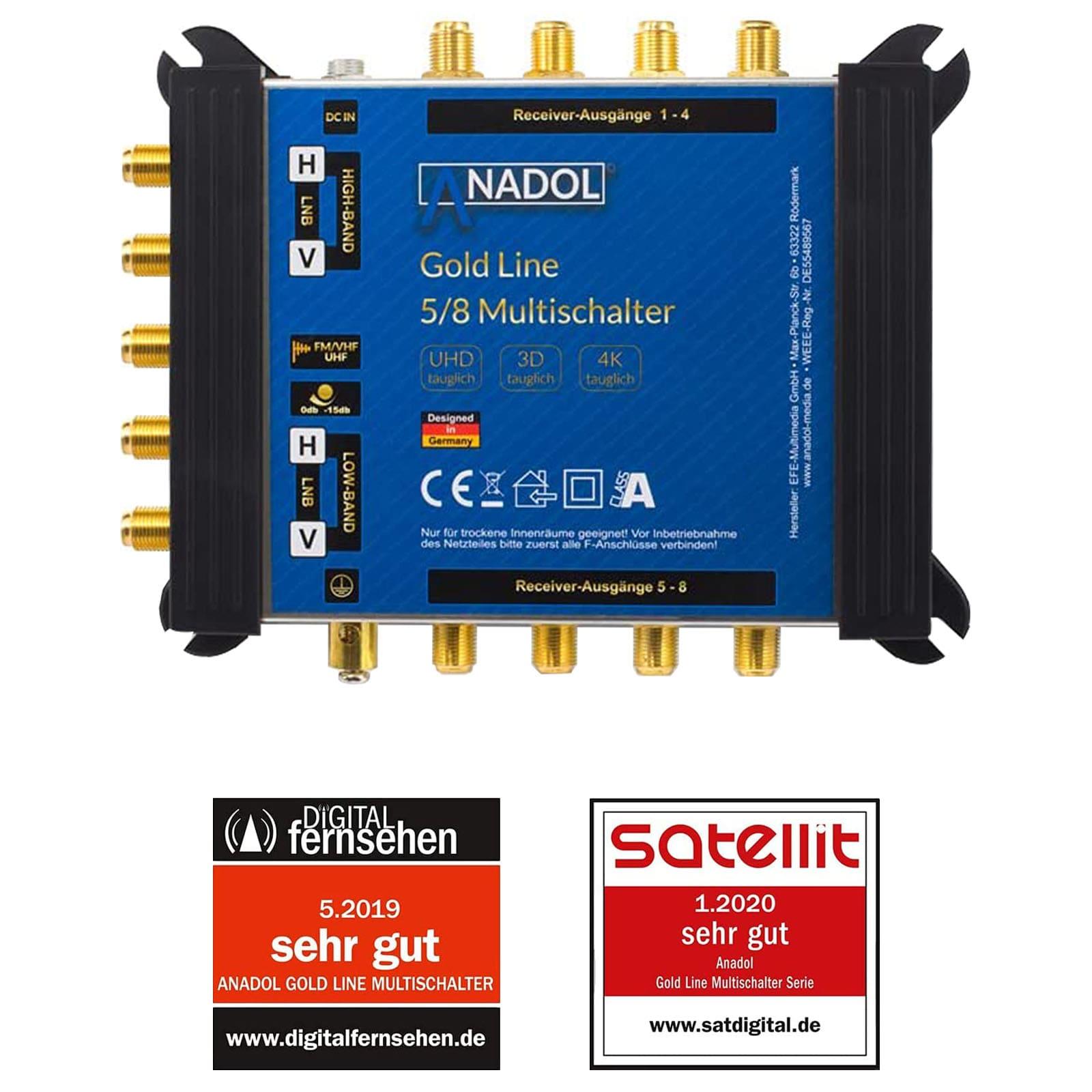

Anadol Gold Line 5/8 Digital Multiswitch for 1 Satellite 8 Outputs +13 Gold-Plated F-Plugs

Compact multiswitch in a stylish housing, but with a housing size of only 160x130x45 mm (without power supply unit) it does not have to hide technically. Due to its small design, it fits into even the smallest corner in the attic. The Anadol Goldline 5/8 multiswitch is suitable for receiving 1 satellite and for up to 8 participants. A satellite receiver or a TV set with an integrated tuner can be connected to each of the 8 outputs.

The technology inside is provided by LNB technology, which has been tried and tested a million times over. The satellite multiswitch Anadol 5/8 Goldline with Diseqc switching is interesting for everyone. You do not need to worry about the installation location of the multiswitch, as this small multiswitch can be placed anywhere. It fits every satellite system with a Quattro LNB.

Unbeatable good!
- Really great in application
- Quite frugal in the running costs
- Very small in price

Features
- External power supply
- Gold-plated F connectors
- mounting feet
- Terrestrial passive
- 13 F plugs free of charge
- HD, HD+, SKY, 4K, UHD, 3D-compatible

Technical Info
- Number of inputs: 4x satellite 1x terrestrial
- Participant exits: 8
- Terr. Amplifier 47-862 MHz: yes
- Frequency range SAT/IF: 950-2200 MHz
- Frequency range Terr.: 47-862 MHz
- Return loss inputs/outputs:> 10dB/8dB
- SAT-SAT decoupling:> 28 dB
- SAT-TV decoupling:> 30 dB
- Max. Internal power consumption (from the power pack): 40 mA
- Max. Remote supply voltage to LNB: 1000mA 12V at the LNB input HH
- Temp. Range + use: -20° to + 60° C/dry interiors
- Dimensions: 16 x 13 x 4.5 cm
- Weight including packaging: 700 g

Delivery
1x Anadol 5/8 Multiswitch with Mounting Feet
1x External Power Supply
13x Gold-Plated F Connectors
1x Brief Instruction in German & English
