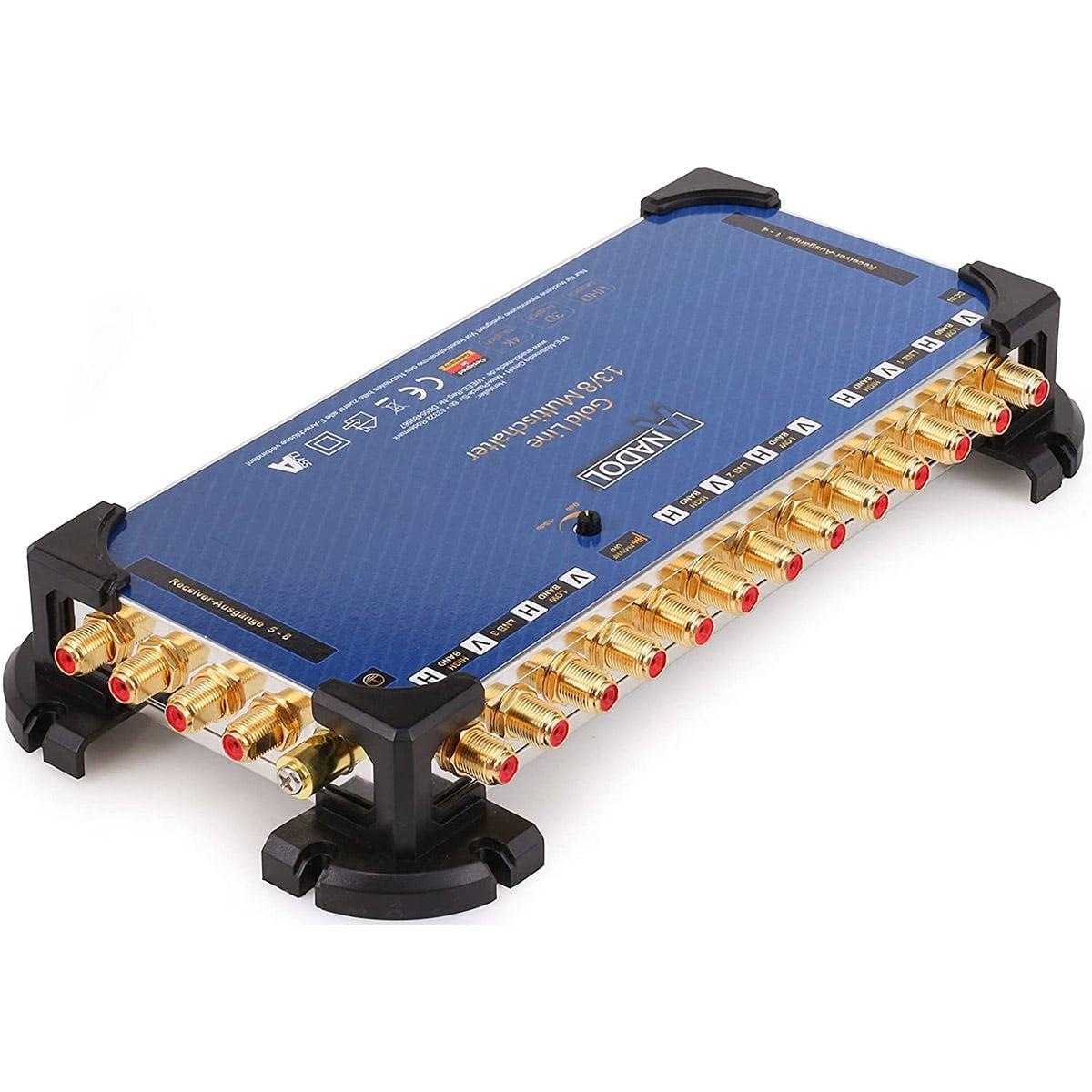

Anadol Gold Line 13/8 Multiswitch (for 3 Satellites & 8 Participants, +21 Gold-Plated F-Plugs)

Compact multiswitch in stylish housing. The Anadol Gold Line multiswitch 13/8 - with highly integrated high-frequency components in combination with tried and tested device mechanics ensures a balanced product at an excellent price-performance ratio.

The Anadol Gold Line 13/8 multiswitch is suitable for receiving 3 satellites and for up to 8 participants. A satellite receiver or a TV set with an integrated tuner can be connected to each of the 8 outputs. Reception is only possible with a Quattro LNB. (All 8 participants can watch all programs independently of each other.)

Features
- Mounting Feet
- Terrestrial Passive
- External Power Supply
- Gold-Plated F Connectors
- HD, HD +, SKY, 4K, UHD-compatible

Reception is only possible with a Quattro LNB. Feeding of a DVB-T / T2 antenna or a broadcast antenna (radio: DAB / DAB + / UKW / FM) is possible.

Technical Info
- Number of Inputs: 12x Satellite 1x Terrestrial
- Participant Exits: 8
- Frequency Range SAT/IF: 950 - 2200 MHz
- Terrestrial Frequency Range: 47 - 862 MHz
- Max. Output (SAT): 95 dB
- Max. Output (TERR): 80 dB
- TERR-SAT Decoupling: 25 dB
- SAT-SAT Decoupling: 25 dB
- TERR Attenuator: 0 - 15 dB
- Impedance: 75 ohms
- Power Supply: 100-240V AC 50 / 60Hz - 12V DC / 1.6A
- Dimensions: 26.1 x 13.3 x 4.5 cm
- Weight without Packaging: 490 g
- Weight including Packaging: 950 g

Delivery
1x Anadol Gold-Line 13/8 Multiswitch with Mounting Feet
1x External Power Supply
21x Gold-Plated F Connectors
1x Quick User Guide (De & En)
